Slurry Pump Rubber Parts | 100% Warman Interchangeable | Kenda Pump
Kenda Pump offers premium rubber slurry pump parts 100% interchangeable with Warman series. Specialized in R55 natural rubber impellers and liners for superior acid and corrosion resistance in mining & chemical applications. Request a quote for durable rubber components.
Part Category: Impeller, Volute Liner, Frame Plate Liner Insert, Frame Plate Liner, Auxiliary Impeller, Auxiliary Impeller Retainer, Seal Ring, etc.
Materials (Customizable): Natural Rubber, Butyl Rubber (IIR), Ethylene Propylene Diene Rubber (EPDM), Nitrile Rubber (NBR), Fluoro Rubber (FKM/Viton), etc.
Stock Status: In sufficient stock, fast delivery
Our spare parts are 100% dimensionally, structurally and performance interchangeable with Warman slurry pump components. They are fully compatible with all standard heavy-duty slurry pumps on the market.
When installed into your existing pump units, no modifications or machining are required—they can be directly replaced, ensuring easy installation, stability and reliability.

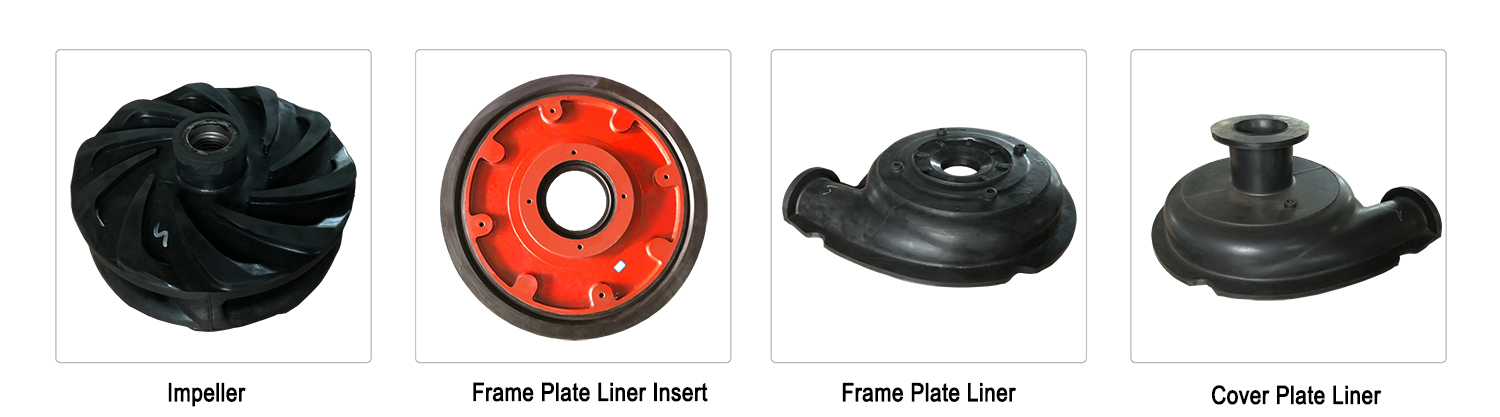

Main Rubber Components of Slurry Pump

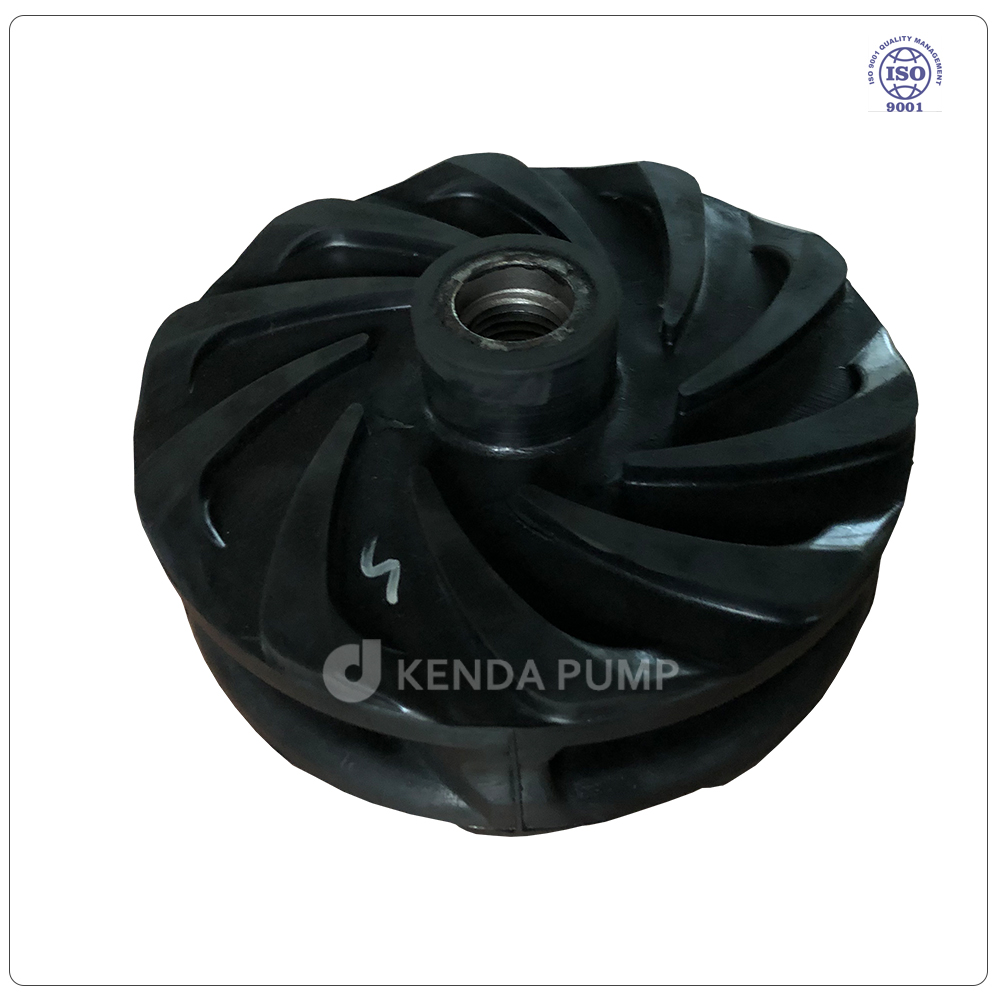

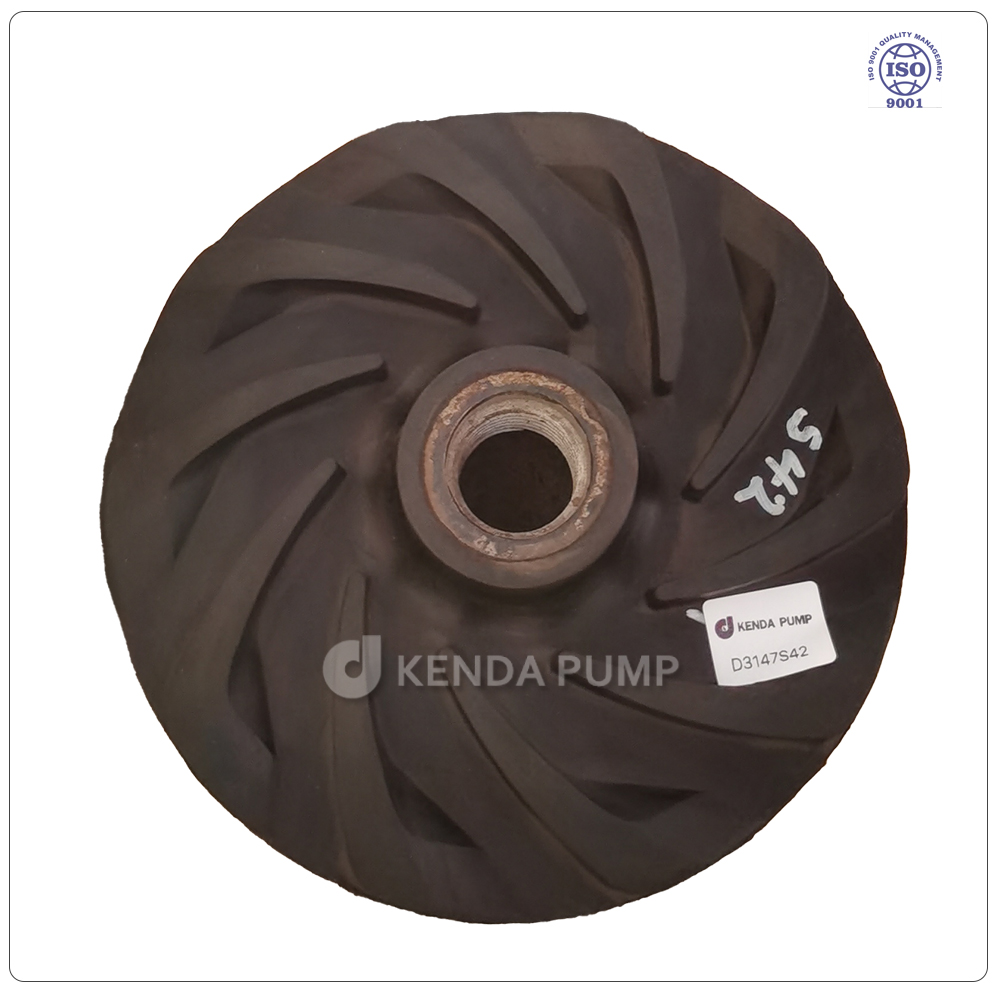

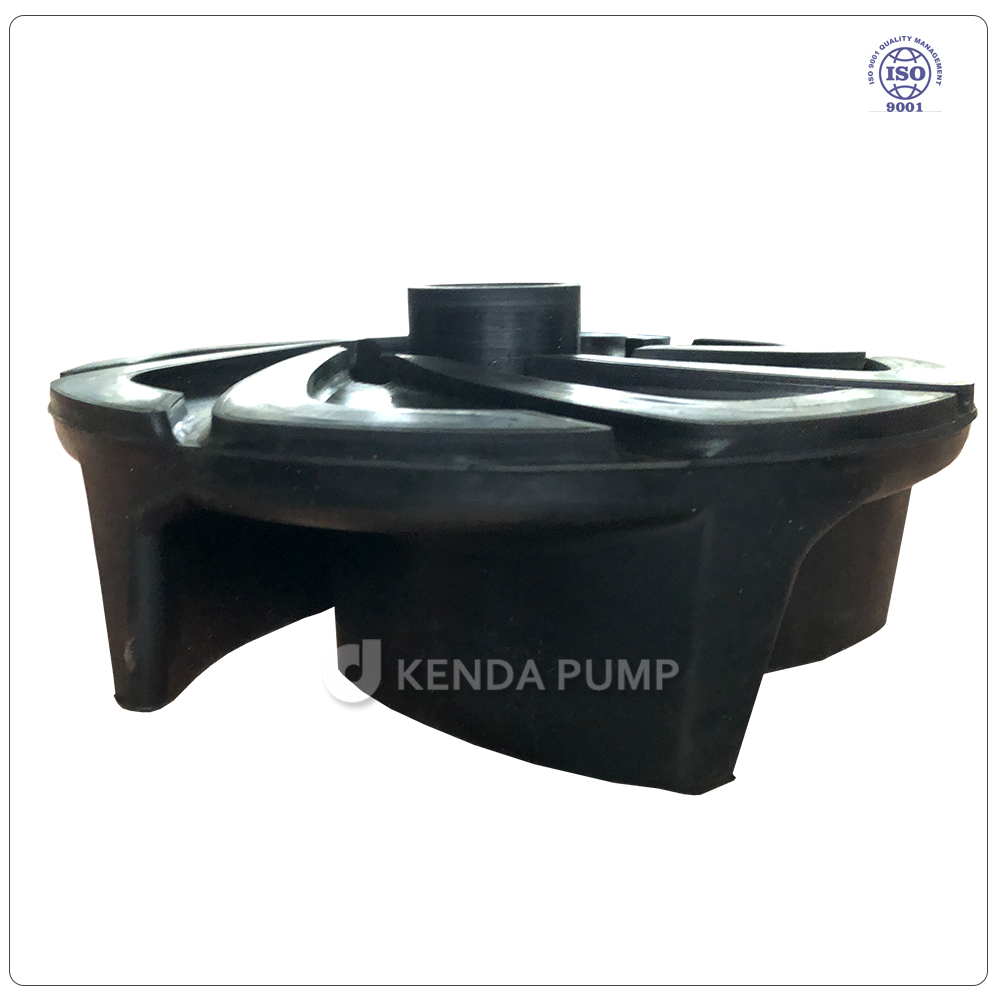

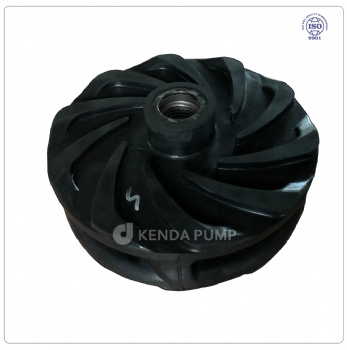

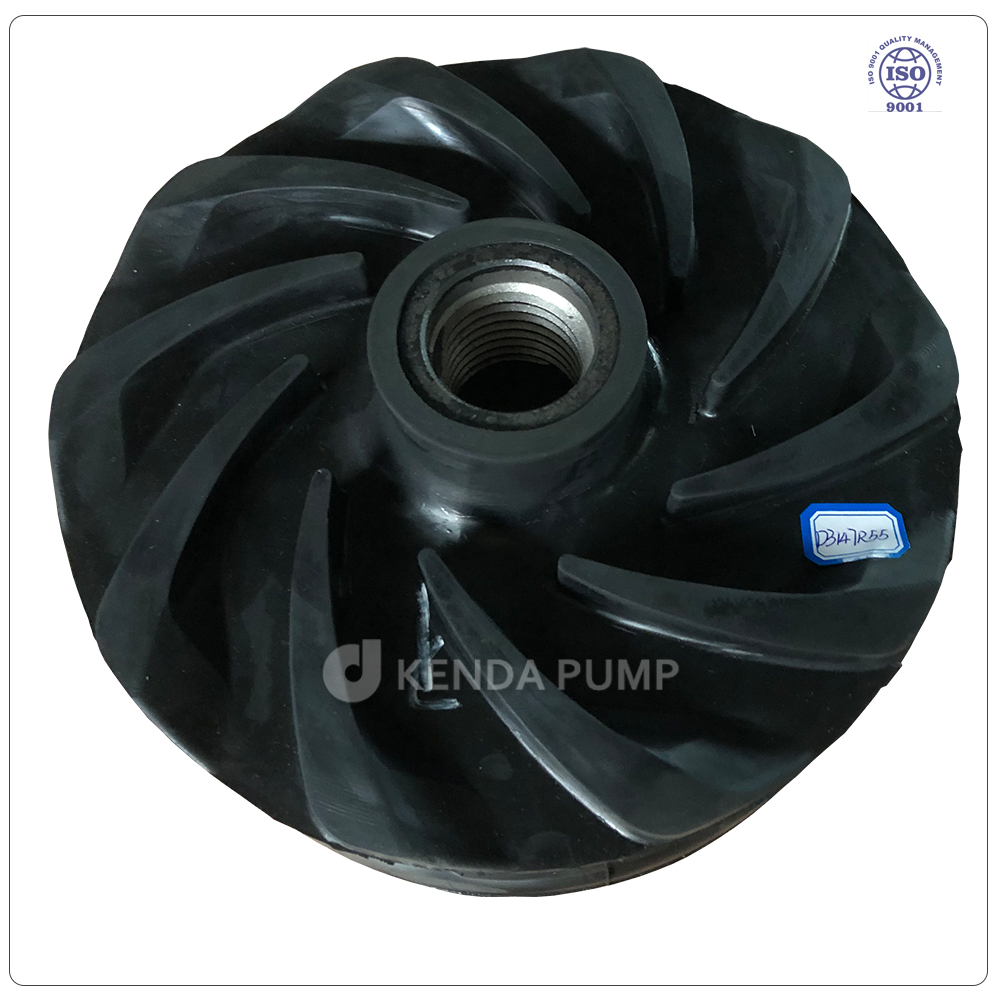

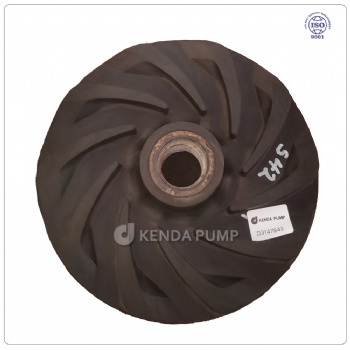

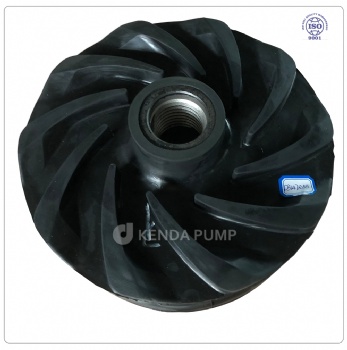

Rubber Impeller
Precision molded with a high-strength metal skeletal frame, ensuring both structural rigidity and exceptional wear resistance for fine particle slurries.

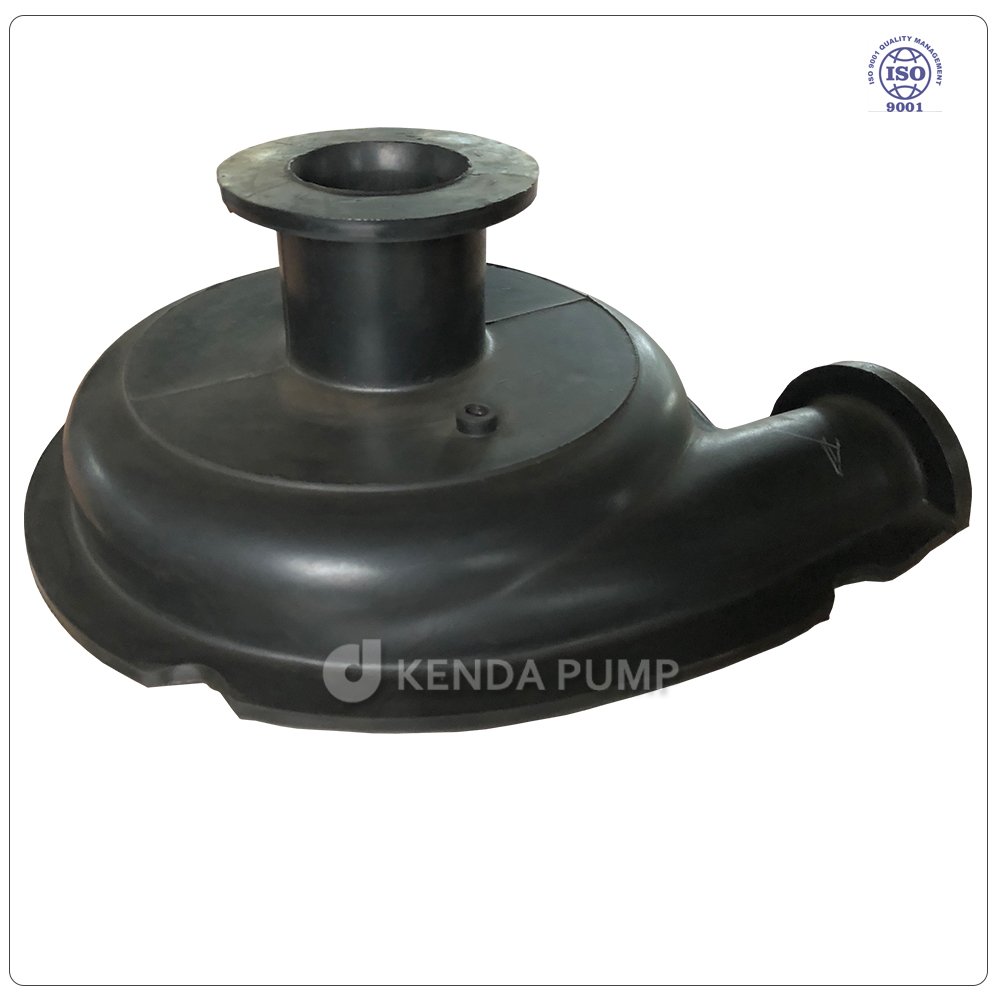

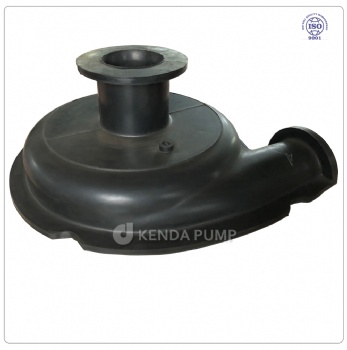

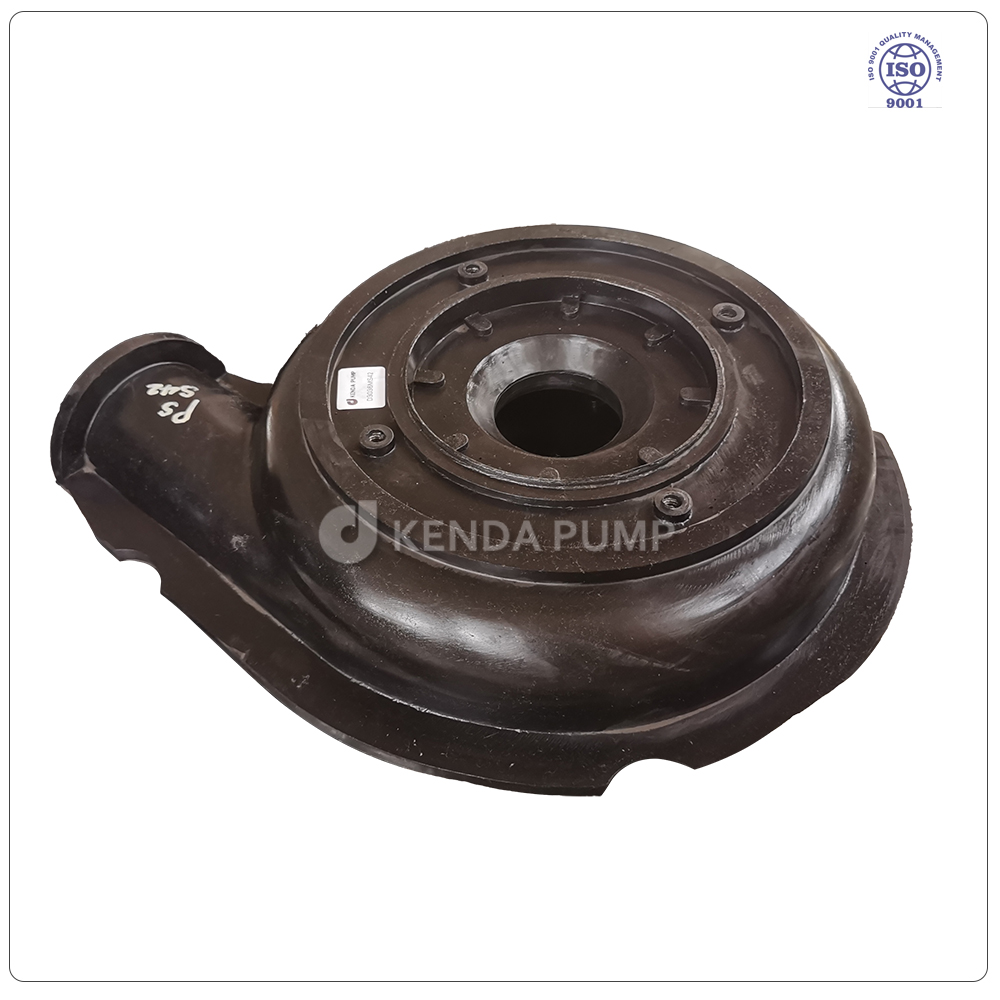

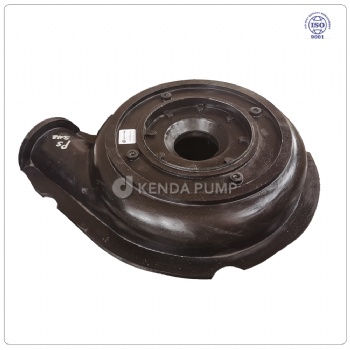

Rubber Volute Liner
Integrated thick rubber lining designed to handle acidic and corrosive mediums while significantly reducing noise and vibration.

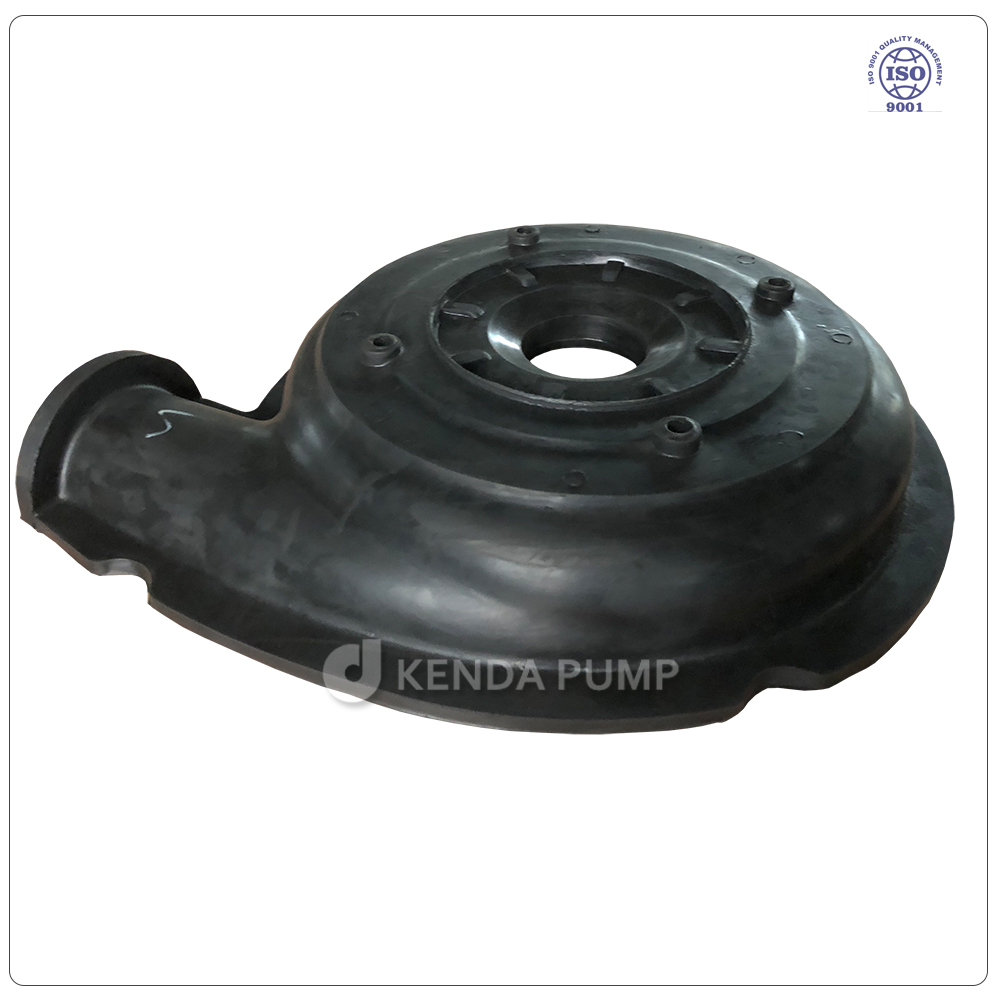

Frame Plate Liner & Cover Plate Liner
Comprehensive rubber protection for the pump casing, featuring easy-to-replace bolt-on designs.
Rubber Expeller & Expeller Ring
Reliable dry sealing components that prevent leakage and extend the service life of the shaft seal.
Material List
We utilize specialized elastomer compounds to match diverse chemical and physical working conditions。
|
Material Code |
Material Description |
Core Advantages |
Application Scenarios |
|
K R26 |
Standard Natural Rubber |
Fine particle wear resistance, high elasticity, cost-effective |
Fine tailings, slurry, neutral low corrosion |
|
K R33 |
Soft High-Elasticity Natural Rubber |
Tear resistance, cutting resistance, angular particle resistance |
Sand and stone, coarse particles, medium abrasion |
|
K R55 |
Acid-Resistant Natural Rubber |
Weak acid resistance, fine particle wear resistance |
Mine acidic tailings, weak corrosive slurry |
|
K S21 |
Butyl Rubber / IIR |
Inorganic acid/alkali resistance, ozone resistance, low permeability |
Acid washing, chemical fine particles, medium temperature |
|
K S01 |
EPDM |
Aging resistance, heat resistance, ozone resistance |
High temperature strong acid, strong corrosion, low abrasion |
|
K S10 |
Nitrile |
Oil resistance, wear resistance, high cost-performance |
Oily sewage, lubricating media |
|
K S31 |
CSM / Hypalon |
Oil resistance, oxidation resistance, medium temp acid/alkali resistance |
Desulfurization, oily slurry, chemical corrosion |
|
K S44 / K S42 |
Neoprene |
Oil resistance, weather resistance, aging resistance |
General sealing, oil resistance, light corrosion |
|
K S50 |
FKM / Viton |
High temperature resistance, strong corrosion resistance, solvent resistance |
High temperature strong acid, strong corrosion, low abrasion |
Quality Control and Process
Advanced Vulcanization Process
Our rubber parts undergo high-temperature, high-pressure vulcanization in precision molds to ensure uniform density and eliminate internal defects.
Bonding Strength Test
We conduct rigorous pull-tests to ensure the rubber-to-metal bonding strength exceeds industry standards, preventing delamination under high-speed operation.
Dimensional Precision
CNC-machined molds guarantee that every rubber part matches the original equipment manufacturer (OEM) dimensions for a perfect fit.
Model Code Comparison Table
Comparison Table of Partial Pump Model Part Codes
|
Part Category |
Part Code |
Applicable Pump Models |
|
Impeller |
B1127 |
1.5/1B-AH(R) |
|
B15127 |
2/1.5B-AH |
|
|
C2147 |
3/2C-AH(R) |
|
|
C3147 |
4/3C-AH |
|
|
D3147 |
4/3D-AH(R) |
|
|
E4147 |
6/4D-AH(R) 6/4E-AH(R) 6/4X-AH |
|
|
F6147 |
8/6E-AHR |
|
|
FAM8147 |
10/8F-AH |
|
|
G10147 |
12/10ST-AH |
|
|
G12147 |
14/12ST-AH |
|
|
GAM14147 |
16/14TU-AH |
|
|
Front Liner |
E4083 |
6/4D-AH(R) 6/4E-AH(R) |
|
F6083 |
8/6E-AHR 8/6X-AH 8/6R-AH(R) |
|
|
G8083 |
10/8F-AH 10/8ST-AH 10/8X-AH |
|
|
G12083 |
14/12ST-AH |
|
|
H14083 |
16/14TU-AH |
|
|
back liner |
B1041NA |
1.5/1B-AH(R) |
|
B15041NA |
2/1.5B-AH |
|
|
C2041 |
3/2C-AH(R) |
|
|
D3041 |
4/3C-AH 4/3D-AH(R) |
|
|
E4041 |
6/4D-AH(R) 6/4E-AH(R) 6/4X-AH |
|
|
F6041 |
8/6E-AHR 8/6X-AH 8/6R-AH(R) |
|
|
G8041 |
10/8F-AH 10/8ST-AH 10/8X-AH |
|
|
G10041 |
12/10ST-AH |
|
|
G12041 |
14/12ST-AH |
|
|
H14041 |
16/14TU-AH |
|
|
Volute Liner |
B1110 |
1.5/1B-AH(R) |
|
B15110 |
2/1.5B-AH |
|
|
C2110 |
3/2C-AH(R) |
|
|
D3110 |
4/3C-AH 4/3D-AH(R) |
|
|
E4110 |
6/4D-AH(R) 6/4E-AH(R) 6/4X-AH |
|
|
F6110 |
8/6E-AHR 8/6X-AH 8/6R-AH(R) |
|
|
G8110 |
10/8F-AH 10/8ST-AH 10/8X-AH |
|
|
G10110 |
12/10ST-AH |
|
|
G12110 |
14/12ST-AH |
|
|
H14110 |
16/14TU-AH |
|
|
Due to limited space, not all part specifications and models can be displayed. For a complete list or customized solutions, please feel free to contact us by email at any time. |
||
Packaging & Global Shipping
UV Protection: Rubber parts are wrapped in UV-resistant black film to prevent premature aging or cracking during storage and transit.
Seaworthy Crates: Heavy-duty, fumigation-free wooden cases with internal bracing to prevent deformation of large rubber liners.
Fast Logistics: Standard R55 liners and impellers are kept in stock for 48-hour dispatch to global mining sites via air or sea freight.
FAQ
Q1: Why choose rubber lined parts over high-chrome metal parts?
A: Rubber is superior for handling slurries with fine particles (below 10mm) and highly corrosive liquids. It offers better resilience against impact and is generally more cost-effective for acidic environments compared to metal.
Q2: What is the maximum temperature your rubber parts can withstand?
A: Our standard R55 natural rubber is suitable for temperatures up to 70°C (158°F). For higher temperature applications, we provide specialized synthetic elastomers like EPDM or Viton that can handle up to 120°C.
Q3: How do I identify the correct rubber part code for my pump?
A: You can provide us with the Warman® part code (e.g., B1127R, D3147R). The "R" suffix typically denotes a rubber component. If the code is missing, our engineers can assist via dimensional drawings.
Q4: Can Kenda rubber parts be used in pumps from other brands?
A: Yes, as long as the pump follows the standard heavy-duty slurry pump design (like the AH series), our parts are 100% dimensionally compatible and interchangeable.
Disclaimer：KENDA has no affiliation or business relationship with Warman®, a company under the Weir Minerals Group. All names, models, symbols and descriptions in this document are for reference only and do not imply that the listed pumps or spare parts are Warman pump products. KENDA slurry pump parts are only interchangeable and compatible with Warman® slurry pump parts.
This document is the property of KENDA Pumps. No part of this document may be reproduced or disclosed to any third party without prior written authorization.
