SPECIFICATIONS:
Sizes from 3x2x13 to 10x8x14
Flow rates up to 300 m3/h
Head pressure up to 33 m
Material: Ductile Iron, High chrome alloy, Stainless Steel

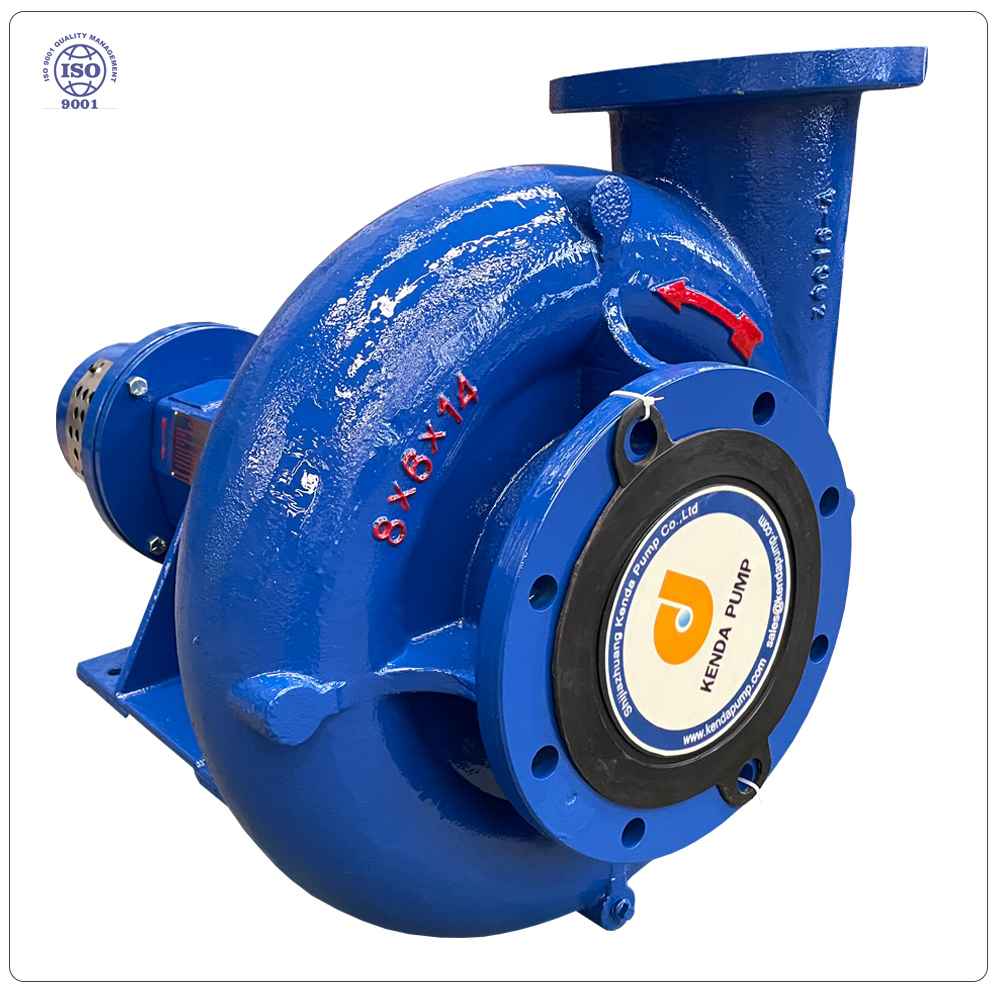

KS Series Centrifugal Sand Pump | Pumps for Solids Control Systems
The KS centrifugal pump includes virtually all of the features of the KM. The KS is more compact in design and can be adapted for hydraulic motor drive. This feature makes the KS ideal for use in applications such as oilfield frac truck as well as blending and pump charging service. The KS’s variable speed hydraulic drive make this an excellent pump for water well drilling applications.
Features
• Up to 50% more capacity from the 8 x 6 pump
• Optimum pressure at low operating speeds
• Thicker casing to extend life from wear and corrosion
• New impeller design to reduce loads and extend bearing life
• Larger, stronger shaft to reduce deflection
• Replaceable shaft sleeve in packing wear area
• Larger, long-life bearings
• Replaceable stuffing box cover
• Smoother, non-turbulent flow throughout casing
Typical Configurations:
3x2x13 6x5x14
4x3x13 8x6x11
5x4x14 8x6x14
6x5x11 10x8x14
Kenda KM Series Centrifugal Sand Pump Parts List
Item | Qty | OEM Part No. | Description | Material | Weight (kg) | ||
1* | 1 | See below | Casing | ||||
1A | 1 | 10399-46-1 | Gasket,casing | Vellumoid | 0.01 | ||
1B | 12 | 3932-61 | Nut,casing | Stl | 0.05 | ||
1C | 12 | 3862-76 | Stud,casing | Stl | 0.16 | ||
1D | 1 | 8505-04-01 | Plug,Casing Drain | Stl | 0.03 | ||
1E | 1 | 8505-04-01 | Plug,flush line | Stl | 0.03 | ||
2* | 1 | See below | Impeller | ||||
2A | 1 | 19110-72 | Seal,impeller | Viton | 0.002 | ||
2B | 1 | 7300239 | Washer,impeller | Stl | 0.02 | ||
2C | 1 | 7415648 | Bolt,impeler lock | Stl | 0.15 | ||
3*# | 1 | 22223-01-30 | Stuffing box,mech.seal | Hard Iron | 20 | ||
3*& | 1 | 20614-01-30 | Stuffing box,packed | Hard Iron | 20 | ||
3A | 2 | 3861-117 | Bolt,stuffing box | Stl | 0.05 | ||
4 | 1 | 20622A | Gland assy,packing | Stl 304 | 1 | ||
5A# | 1 | 22451-1 | Seal,mechanical | Tung/Tung | 1 | ||
5A# | 1 | 648402600 | Packing, Shaft - M.S. Backup | Graphite Acrylic | 0.3 | ||
5A# | Option | 648402600 | Packing, Shaft - M.S. Backup | Kevlar | 0.3 | ||
5A | 1 | 25014-04M-B | Packing, Shaft - w/latern ring | Graphite/Acrylic | 0.5 | ||
5A | Option | 250147-04M-D | Packing, Shaft - w/latern ring | Teflon, White | 0.5 | ||
5A# | Option | 25014-04M-C | Packing, Shaft - w/latern ring | Kevlar | 0.5 | ||
6 | 2 | B3701A | Bolt assy,gland | Stl 304 | 0.15 | ||
7 | 1 | 20612-02-33 | Shaft | 42CrMo | 17 | ||
7A | 1 | 20943-04A | Sleeve,shaft | 38CrMoAl | 1 | ||
7B | 1 | 4371-5-21 | Key,shaft | Stl | 0.11 | ||
7C | 1 | 23444-01-72 | Seal,shaft sleeve | Viton | 0.005 | ||
8 | 1 | 22210-1A | Deflector assembly | Composite | 0.4 | ||
9 | 1 | 20618-12-1 | Frame,grease lubricated | Cast iron | 80 | ||
9C | 1 | 8505-04-01 | Plug, Frame Drain | Stl | 0.033 | ||
9D | 1 | 8267-01 | Breather | Stl | 0.1 | ||
9G | 3 | 2538-1H | Bolt,casing jack | Stl | 0.16 | ||
10A | 1 | 20626 | Cover,inboard bearing | Iron | 2.6 | ||
10B | 1 | 20625 | Gasket,I.B.Brg.Cover | Vegetable fiber | 0.01 | ||
10C | 1 | 20619-01 | Oil seal, I.B.Brg.Cover | Buna-n | 0.06 | ||
10D | 2 | 3861-1 | Bolt, I.B.Brg.Cover | Stl | 0.03 | ||
10E | 2 | 3932-2 | Nut, I.B.Brg.Cover | Stl | 0.07 | ||
10F | 1 | 20620-01 | Exclusion Seal, I.B. Brg. Cvr. | Buna-n | 0.01 | ||
10G | 1 | 21641-01 | Grease fitting | Stl | 0.07 | ||
10H | 1 | 648411908 | Grease fitting | Stl | 0.07 | ||
11 | 1 | 661 00901 OA | Bearing, Inboard & Spacer | Roller | 2.1 | ||
11 | 1 | 20615-1 | Bearing,inboard | Vendor | 2.1 | ||
12 | 1 | 20624-01-01 | Housing,O.B.bearing | Iron | 6 | ||
12A | 1 | 7496-253 | Seal, O.B.Brg.housing | Buna-n | 0.01 | ||
12B | 4 | 3861-138 | Bolts, O.B.Brg.housing | Stl | 0.05 | ||
12C | 2 | 3932-62 | Nut, O.B.Brg.housing jam | Stl | 0.016 | ||
13 | 1 | 20617A | Cover,O.B.Bearing | Iron | 1.8 | ||
13A | 1 | 19368-01 | Grease zerk, O.B.Brg.Cover | Brass | 0.01 | ||
13B | 1 | 7496-26 | O-ring, O.B.Brg.Cover | Buna-n | 0.001 | ||
13C | 1 | 20619-02 | Oil seal, O.B.Brg.Cover | Buna-n | 0.04 | ||
13D | 2 | 3861-139 | Bolt, O.B.Brg.Cover | Stl | 0.025 | ||
14 | 2 | 20616-1 | Bearing, O.B. | Vendor | 1.5 | ||
14A | 1 | 6124-4 | Lockwasher,O.B.Bearing | Stl | 0.01 | ||
14B | 1 | 6123-4 | Locknut, O.B.Bearing | Stl | 0.22 | ||
Casings-includes studs,nuts & gasket | |||||||
1* | 1 | 19203-01-30A | Casing,3×2×13 | Hard Iron | 55 | ||
1* | 1 | 19205-01-30A | Casing,4×3×13 | Hard Iron | 57 | ||
1* | 1 | 19222-01-30A | Casing, 5×4×14 | Hard Iron | 88 | ||
1* | 1 | 19122-01-30A | Casing,6×5×11 | Hard Iron | 90 | ||
1* | 1 | 19123-01-30A | Casing, 6×5×14 | Hard Iron | 95 | ||
1* | 1 | 19763-01-30A | Casing, 8×6×11 | Hard Iron | 97 | ||
1* | 1 | 19117-01-30A | Casing,8×6×14 | Hard Iron | 125 | ||
1* | 1 | 20937-01-30A | Casing,10×8×14 | Hard Iron | 155 | ||
Impellers | |||||||
2* | 1 | 19204-XX-30 | Impeller,3×2×13 | Hard Iron | 9 | ||
2* | 1 | 19206-XX-30 | Impeller,4×3×13 | Hard Iron | 12.5 | ||
2* | 1 | 19224-XX-30 | Impeller,5×4×14 | Hard Iron | 16 | ||
2* | 1 | 19121-XX-30 | Impeller,6×5×11 | Hard Iron | 14 | ||
2* | 1 | 19121-XX-30 | Impeller, 6×5×14 | Hard Iron | 18 | ||
2* | 1 | 19121-XX-30 | Impeller, 8×6×11 | Hard Iron | 18 | ||
2* | 1 | 19116-A0-30 | Impeller,8×6×14 | Hard Iron | 20 | ||
2* | 1 | 21867-XX-30 | Impeller,10×8×14 | Hard Iron | 20 |
Note:1. XX-Impeller code-Firsr X equals diameter of impeller in inches minus 4.Therefore 10″=6,9″=5 etc…14″ use lettet A;
2. Second X equals frational data in1/8′s.Therefore 1/8″=1, 1/4″=2 ,etc…Thus a 10.5″impeller is coded as 64, 12″impeller is coded as 80, 13.25″impeller is coded as 92 etc…
3. YYY-the metric diameter of impeller,therefore 12″ is coede as 305mm,11″ is coded as 280mm
Application:
• Barite, ferric oxide, and mineral oil | • Base drilling muds | • Glass fibers | • Sugar processing |
• coal conveyers | • Cement | • Mine de-watering | • Lime slurries |
• Kaolin clay | • Crystalline forms | • Ash handling | • Mineral Processing |
Disclaimer:
Kenda Pump is a Chinese company. It neither represents Mission Magnum® of NOV Group nor has any affiliation with the brand. All names, numbers, symbols, and descriptions contained herein are for reference only and do not imply that any pumps or parts listed are products of Mission Magnum Pumps.
Kenda sand pumps and spares are only interchangeable with those of Mission Magnum.
This document is the exclusive property of Kenda Pump. It may not be reproduced or disclosed to any third party without written authorization.
