Vertical Turbine Pump

Specifications
Capacity: 50-8400 m3/h
Head: 15-150m
Speed: 420-2980rpm
Voltage: 380V, 6000V, 10000V
Frequency of power:50Hz or 60Hz
Material: Cast Iron, Ductile Iron, Carbon steel, Stainless steel, Super duplex, Hastelloy, Titanium etc.

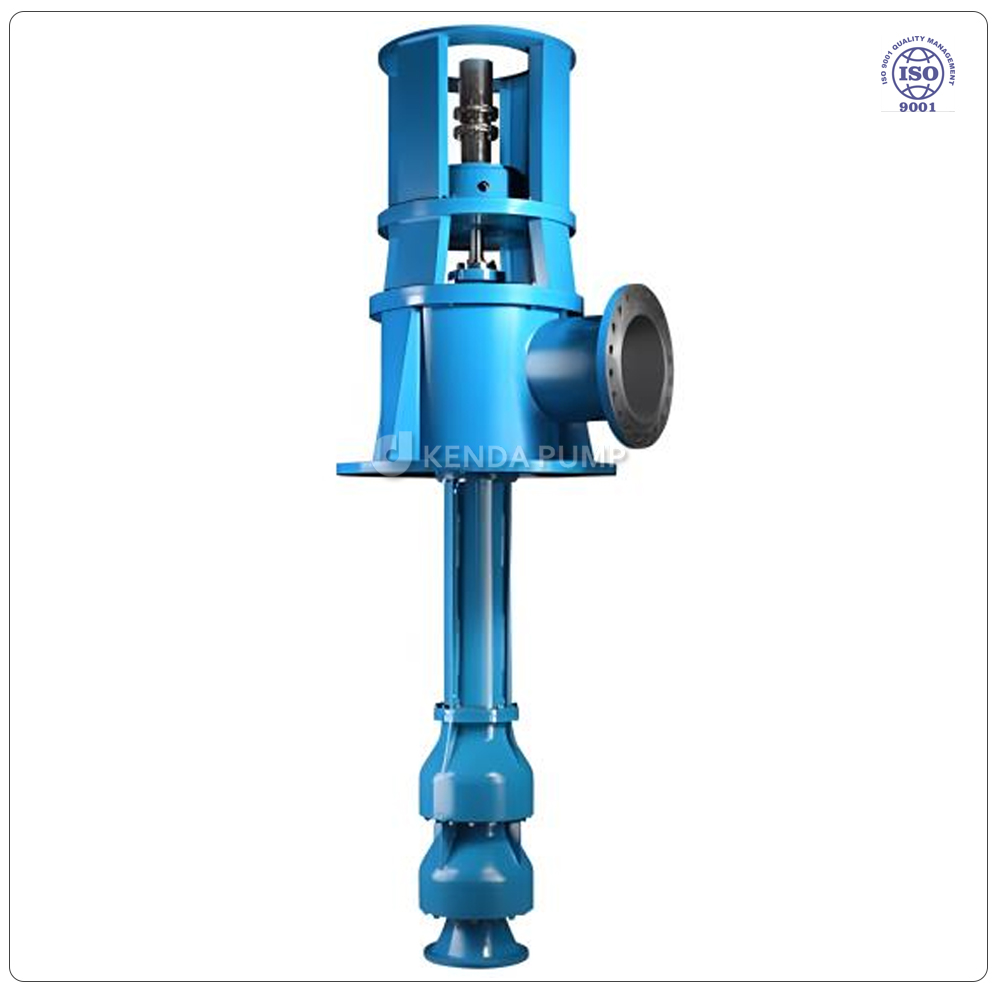

Kenda KVT Series Vertical Turbine Pump


KVT is a new product produced according to the requirement of the market. It adopts the best and advanced technology in its design and manufacture. The pumps are not only reliable, high-efficient, but also easy for installation and maintenance.

KVT is widely used for transferring those fluid with temperature below 55, like the clear water, rain, iron oxide skin water, sewage, corrosive industrial effluent and sea water in power stations, metallurgy industries, fire-fighting industries, mines, iron-works and public industries and so on. The transferring fluid's temperature could also reach 90 through our special design.


Specifications


Capacity: 50-8400 m3/h
Head: 15
-150m

Speed: 420-2980rpm

Voltage: 380V, 6000V, 10000V
Frequency of power:50Hz or 60Hz


Features


-KVT's suction inlet is straight downward, outlet horizontal. Pump and motor can be directly connected on the same foundation; alternatively, pump connects to diesel engine via gear box.

-A strainer mesh is fitted at the pump inlet. Its properly sized holes block large impurities to prevent damage while ensuring sufficient inflow for high efficiency.

-Impellers have balancing holes to counter axial force. Replaceable gasket rings on front and back covers protect the impeller and its body from damage.

-Middle shaft, column pipe and protective pipe can be multi-section. Shafts are connected via screwed or muff couplings. Column pipe quantity is adjustable to suit submerged depth; impellers can be single or multi-stage to meet different head requirements.

-Column pipes are flange-connected, with a guide bearing in between made of PTFE, cellon or nitrile rubber. KVT features a self-closing seal system to stop sewage from entering the guide bearing when the pump is shut down.

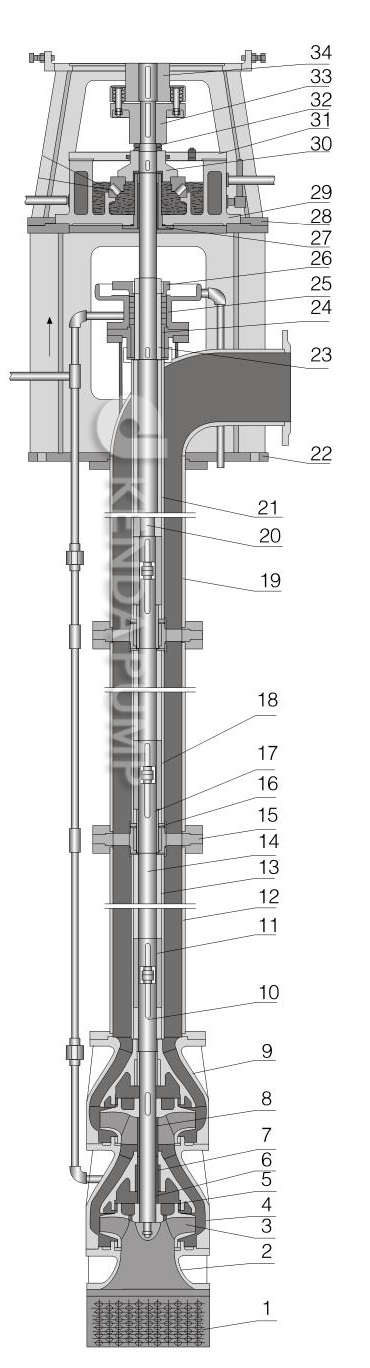

Kenda KVT Series Vertical Turbine Pump Structure



1

Strainer mesh

13

Lower protective pipe

25

Stuffing box

2

Suction bell

14

Middle shaft

26

Stuffing box gland

3

Impeller

15

Guide bearing body

27

Seal cartridge

4

Impeller body

16

(Middle) guide   bearing

28

Motor seat

5

Gasket ring

17

(Middle) bearing sleeve

29

Bearing body

6

(Lower) shaft sleeve

18

Middle protective pipe

30

Bearing Sleeve

7

(Lower) guide bearing

19

Adjusting column pipe

31

Bearing body gland

8

Impeller sleeve

20

Armshaft

32

Adjusting nut

9

End impeller bowl

21

Upper protective pipe

33

Pump coupling

10

Impeller shaft

22

Discharge elbow

34

Motor coupling

11

Sleeve coupling parts

23

Packing sleeve



12

Column pipe

24

Upper guide bearing sleeve





Kenda Vertical Turbine Pump Performance Chart

Type

Flow

Head

Speed

Motor

Power

Motor

Type

Eff.

Weight

m³/h

l/s

m

r/min

kW

/

%

kg

150KVT50 - 20××

50

1

20

2950

5.5

132S - 2

70

480 + 90N

2

40

11

160M - 2

510 + 90N

3

60

15

160L - 2

540 + 90N

4

80

22

180M - 2

570 + 90N

5

100

30

200L - 2

600 + 90N

6

120

37

200L - 2

630 + 90N

7

140

37

200L - 2

660 + 90N

150KVT100 - 18××

100

1

18

2950

11

160M - 2

72

600 + 100N

2

36

22

160L - 2

630 + 100N

3

54

30

200L - 2

660 + 100N

4

72

37

200L - 2

690 + 100N

5

90

45

225M - 2

720 + 100N

6

108

55

250M - 2

750 + 100N

7

126

75

280S - 2

780 + 100N

8

144

75

280S - 2

810 + 100N

150KVT140 - 15××

140

1

15

2950

11

160M - 2

73

600 + 100N

2

30

22

160L - 2

630 + 100N

3

45

37

200L - 2

660 + 100N

4

60

45

225M - 2

690 + 100N

5

75

55

225M - 2

720 + 100N

6

90

75

280S - 2

750 + 100N

7

105

75

280S - 2

780 + 100N

8

120

90

280M - 2

810 + 100N

9

135

90

280M - 2

840 + 100N

150KVT200 - 20××

200

1

20

2950

22

180M - 2

73

720 + 150N

2

40

45

225M - 2

780 + 150N

3

60

55

250M - 2

860 + 150N

4

80

75

280S - 2

920 + 150N

5

100

90

280M - 2

980 + 150N

6

120

110

315S - 2

1040 + 150N

200KVT300 - 14.5

240


16.4

1480

22

180L - 4

74.3

900 + 170N

300

14.5

76.0

360

11.8

66.5

200KVT300 - 19

240


21.3

1480

30

200L - 4

76.6

900 + 170N

300

19

76.2

360

15.4

70.7

200KVT300 - 23

240


25.3

1480

37

225S - 4

76.7

900 + 170N

300

23

76.1

360

20.2

70.6

200KVT-14.5×2

240

66.7

32.8

1480

45

225M - 4

74.3

1020 + 170N

300

83.3

29

76

360

100

23.6

66.5

200KVT-19×2

240

66.7

42.6

1480

55

250M - 4

76.6

1020 + 170N

300

83.3

38

76.2

360

100

30.8

70.7

200KVT-23×2

240

66.7

50.6

1480

75

280S - 4

76.7

1020 + 170N

300

83.3

46

76.1

360

100

40.4

70.6

200KVT-19×3

240

66.7

63.9

1480

75

280S - 4

76.2

1140 + 170N

300

83.3

57

76.2

360

100

46.2

70.7

200KVT-23×3

240

66.7

75.9

1480

110

315S - 4

76.7

1140 + 170N

300

83.3

69

76.1

360

100

60.6

70.6

200KVT-23×4

240

66.7

100.8

1480

132

315M - 4

76.7

1260 + 170N

300

83.3

92

76.1

360

100

81.6

70.6

250KVT-21

360

100

23.1

1480

45

225M - 4

74

1200 + 250N

450

125

21

79

540

150

18.2

75

250KVT-21A

320

88.9

18.9

1480

37

225S - 4

76

1200 + 250N

400

111.1

16.3

76.5

480

133.3

13.6

66

250KVT-32

360

100

34.8

1480

75

280S - 4

74.7

1280 + 250N

450

125

32

77.5

540

150

28.9

76.8

250KVT-32A

320

88.9

30.7

1480

55

250M - 4

76

1280 + 250N

400

111.1

28

77

480

133.3

24.9

72.7

250KVT-21×2

360

100

46.2

1480

90

280M - 4

74

1400 + 250N

450

125

42

79

540

150

36.4

75

250KVT-32×2

360

100

69.6

1480

160

315L1- 4

74.7

1500 + 250N

450

125

64

77.5

540

150

57.8

76.8

250KVT-32A×2

320

88.9

61.4

1480

110

315S - 4

76

1500 + 250N

400

111.1

56

77

480

133.3

49.8

72.7

250KVT-32×3

360

100

104.4

1480

220

355M - 4

74.7

1720 + 250N

450

125

96

77.5

540

150

86.7

76.8

250KVT-32A×3

320

88.9

92.1

1480

160

315L - 4

76

1500 + 250N

400

111.1

84

77

480

133.3

74.7

72.7

300KVT-25

540

150

27.5

1480

75

280S - 4

74

1340 + 270N

660

183.3

25

79.5

750

208.3

21.6

75

300KVT-25A

490

136.1

22.8

1480

55

250M - 4

73

1340 + 270N

600

166.8

21

79

680

188.9

17.9

74

300KVT-39

540

150

43

1480

132

315M - 4

74

1480 + 270N

660

183.3

39

79

750

208.3

35.6

75

300KVT-39A

490

136.1

35.6

1480

110

315S - 4

73

1480 + 270N

600

166.8

32

78

680

188.9

29.5

74

300KVT-25×2

540

150

55

1480

160

315L - 4

74

1580 + 270N

660

183.3

50

79.5

750

208.3

43.2

75

300KVT-39×2

540

150

86

1480

250

355M - 4

79

1780 + 270N

660

183.3

71.8

75

750

208.3

71.2

73

300KVT-39A×2

490

136.1

65

1480

200

315L - 4

78

1780 + 270N

600

166.8

59

74

680

188.9

55

74

350KVT-19

750

208.3

22.2

1480

90

280M - 4

78

1540 + 270N

900

250

19

81

1050

291.7

16.1

76

350KVT-19A

750

208.3

33.5

1480

132

315M - 4

80.5

1650 + 320N

900

250

30

74

1050

291.7

25.5

75

350KVT-30

750

208.3

33.5

1480

132

315M - 4

80.5

1650 + 320N

900

250

30

74

1050

291.7

25.5

75

350KVT-30A

750

208.3

33.5

1480

110

315S - 4

79

1650 + 320N

850

236.1

27

73

980

272.2

23

73

350KVT-30B

675

187.5

27.4

1480

90

280M - 4

74

1650 + 320N

810

225

25

78

945

262.5

20.7

72

350KVT-48

750

208.3

51.8

1480

200

315L - 4

74

1750 + 320N

900

250

48

80

1050

291.7

42.5

75

350KVT-48A

710

197.2

46.7

1480

160

315L - 4

74

1750 + 320N

850

236.1

43

79

980

272.2

38.4

74

350KVT-48B

675

187.5

42

1480

160

315L - 4

73

1750 + 320N

810

225

39

78

945

262.5

34.4

74

350KVT-30×2

750

208.3

67

1480

250

355M - 4

76

1920 + 320N

900

250

60

80.5

1050

291.7

51

74

350KVT-30A×2

710

197.2

60.5

1480

220

355M - 4

75

1920 + 320N

850

236.1

54

79

980

272.2

46

73

350KVT-30B×2

675

187.5

54.8

1480

200

315L - 4

74

1920 + 320N

810

225

49

78

945

262.5

41.4

72

400KVT-25

1050

291.7

28.3

1480

160

315L - 4

76

2170 + 380N

1320

366.7

25

82

1500

416.7

22

77

400KVT-25A

1000

277.8

25.4

1480

132

315M - 4

75

2170 + 380N

1250

347.2

23

81

1430

397.2

19.5

76

400KVT-39

1050

291.7

44.3

1480

250

315M - 4

75

2280 + 380N

1320

366.7

39

81.5

1500

416.7

34.3

75

400KVT-39A

1000

277.8

40

1480

200

315L - 4

74

2280 + 380N

1250

347.2

35

81

1430

397.2

31

74

400KVT-39B

950

263.9

35.5

1480

160

315L - 4

74

2280 + 380N

1200

333.3

31

80

1350

375

27.8

73

400KVT-25×2

1050

291.7

56.6

1480

315

355L - 4

76

2520 + 380N

1320

366.7

50

82

1500

416.7

44

77

400KVT-25A×2

1000

277.8

51

1480

250

355M - 4

75

2520 + 380N

1250

347.2

45

81

1430

397.2

39.8

76

400KVT-62

1050

291.7

68.5

1480

355

YLS4001 - 4

76

2650 + 400N

1320

366.7

62

81

1500

416.7

56.6

75

400KVT-62A

1000

277.8

61.8

1480

315

YLS3556 - 4

75

2650 + 400N

1250

347.2

56

80

1430

397.2

51.1

74

400KVT-62B

950

263.9

55.5

1480

280

YLS3555 - 4

74

2650 + 400N

1200

333.3

50

80

1350

375

45.8

74

450KVT-17

1500

416.7

19.7

980

132

315L - 6

83.5

2540 + 450N

1740

483.3

17

76

1920

533.3

15.7

81.5

450KVT-17A

1425

395.8

17.8

980

110

315L - 6

83

2540 + 450N

1650

459.2

15.7

83

1825

506.7

14.2

75

450KVT-27

1500

416.7

29.8

980

220

355L - 6

80

2650 + 500N

1740

483.3

27

83

1920

533.3

25

77

450KVT-27A

1425

395.8

26.9

980

200

355M - 6

78

2650 + 500N

1650

459.2

24.5

82

1825

506.7

22.6

76

450KVT-27B

1350

375

24.1

980

160

355M - 6

78

2650 + 500N

1566

435

22

81

1728

480

20.3

75

450KVT-43

1500

416.7

46.2

980

315

YLS4003 - 6

77

2800 + 500N

1740

483.3

43

82

1920

533.3

40.5

76

450KVT-43A

1425

395.8

41.7

980

280

YLS4002 - 6

76

2800 + 500N

1650

459.2

39

81

1825

506.7

36.6

75

450KVT-43B

1350

375

37.4

980

250

YLS3556 - 6

75

2800 + 500N

1566

435

35

80.5

1728

480

32.8

75

450KVT-27×2

1500

416.7

59.6

980

400

YLS4005 - 6

80

3100 + 500N

1740

483.3

54

83

1920

533.3

50

77

450KVT-27A×2

1425

395.8

53.8

980

355

YLS4004 - 6

78

3100 + 500N

1650

459.2

49

82

1825

506.7

45.1

76

500KVT-20

1920

533.3

21

980

200

355M - 6

80.5

3600 + 900N

2160

600

20

84

2400

666.7

17.8

79

500KVT-20A

1824

506.7

19

980

185

355M - 6

79

3600 + 900N

2052

570

18

84

2280

633.3

16.1

78

500KVT-31

1920

533.3

34

980

280

YLS4002 - 6

80

4000 + 900N

2160

600

31

84

2400

666.7

28.5

79

500KVT-31A

1824

506.7

30.7

980

250

YLS3556 - 6

79

4000 + 900N

2052

570

28.3

83

2280

633.3

25.7

78

500KVT-31B

1728

480

27.5

980

220

YLS3556 - 6

79

4000 + 900N

1944

540

25.4

82.5

2160

600

23.1

77

500KVT-50

1920

533.3

52.8

980

450

YLS4501 - 6

79.5

4300 + 900N

2160

600

50

83

2400

666.7

46.1

77

500KVT-50A

1824

506.7

47.7

980

400

YLS4005 - 6

79

4300 + 900N

2052

570

45

81

2280

633.3

41.6

77

500KVT-50B

1728

480

42.8

980

355

YLS4004 - 6

78

4300 + 900N

1944

540

40.3

81

2160

600

37.3

77

500KVT-31×2

1920

533.3

68

980

560

YLS4503 - 6

80

4600 + 900N

2160

600

62

84

2400

666.7

57

79

500KVT-31A×2

1824

506.7

61.4

980

500

YLS4502 - 6

79

4600 + 900N

2052

570

56.7

83

2280

633.3

51.4

78

600KVT-25

2400

666.7

29.7

980

315

YLS4003 - 6

85.6

4800 + 1060N

3000

833.3

25

81

3420

950

21.6

82

600KVT-25A

2280

633.3

26.8

980

280

YLS4002 - 6

80

4800 + 1060N

2850

791.7

22.6

85

3249

902.5

19.5

81

600KVT-39

2400

666.7

43.9

980

450

YLS4501 - 6

81

5340 + 1060N

3000

833.3

39.9

85


3420

950

34.3

82


600KVT-39A

2280

633.3

39.6

980

400

YLS4005 - 6

81

5340 + 1060N

2850

791.7

35.2

84

3249

902.5

31

81

600KVT-39B

2160

600

35.6

980

355

YLS4004 - 6

80

5340 + 1060N

2700

750

31.6

83.5

3078

855

27.8

81

600KVT-62

2400

666.7

68.2

980

710

YLS5001 - 6

81

5440 + 1060N

3000

833.3

62

84.5

3420

950

56.7

81

600KVT-62A

2280

633.3

61.6

980

630

YLS4504 - 6

80

5440 + 1060N

2850

791.7

56

83

3249

902.5

51.1

80

600KVT-62B

2160

600

55.3

980

560

YLS4503 - 6

79

5440 + 1060N

2700

750

50.2

82

3078

855

45.9

79

700KVT-20

3420

950

22.6

740

315

YLS4501 - 8

83.5

5230 + 1200N

3900

1083.3

20

84

4380

1216.7

17.9

84

700KVT-20A

3249

902.5

20.4

740

280

YLS4005 - 8

82

5230 + 1200N

3705

1029.2

18.3

84

4161

1155.8

16.2

81

700KVT-32

3420

950

33.4

740

450

YLS4505 - 8

80

5440 + 1200N

3900

1083.3

32

84

4380

1216.7

27.3

81

700KVT-32A

3249

902.5

30.1

740

400

YLS4504 - 8

79

5440 + 1200N

3705

1029.2

28.6

83

4161

1155.8

24.6

80

700KVT-32B

3078

855

27.1

740

355

YLS4502 - 8

78

5440 + 1200N

3510

975

25.7

82

3942

1095

22.1

79

700KVT-50

3420

950

53.6

740

800

YLS5601 - 8

80

5760 + 1200N

3900

1083.3

50

84

4380

1216.7

46.3

81

700KVT-50A

3249

902.5

48.4

740

710

YLS5004 - 8

79

5760 + 1200N

3705

1029.2

45.4

83

4161

1155.8

41.8

80

700KVT-50B

3078

855

43.4

740

560

YLS5002 - 8

78

5760 + 1200N

3510

975

40.7

82

3942

1095

37.5

78

800KVT-24

4380

1216.7

27.4

740

500

YLS5001 - 8

82

6120 + 1380N

5100

1416.7

24

84

5600

1555.6

22

80

800KVT-24A

4161

1155.8

24.7

740

450

YLS4505 - 8

81

6120 + 1380N

4845

1345.8

21.9

83

5320

1477.8

19.9

79

800KVT-38

4380

1216.7

41.4

740

710

YLS5004 - 8

82

6340 + 1380N

5100

1416.7

38

84

5600

1555.6

34.8

80

800KVT-38A

4161

1155.8

37.4

740

630

YLS5003 - 8

81

6340 + 1380N

4845

1345.8

34.2

83

5320

1477.8

31.4

79

800KVT-38B

3942

1095

33.5

740

560

YLS5002 - 8

80

6340 + 1380N

4590

1275

30.7

82

5040

1400

28.2

77

800KVT-60

4380

1216.7

64.8

740

1120

YLS6031 - 8

81

6670 + 1380N

5100

1416.7

60

84

5600

1555.6

56.7

82

800KVT-60A

4161

1155.8

58.5

740

1000

YLS5603 - 8

80

6670 + 1380N

4845

1345.8

54.3

83

5320

1477.8

51.2

81

800KVT-60B

3942

1095

52.5

740

900

YLS5602 - 8

79

6670 + 1380N

4590

1275

48.8

82

5040

1400

45.9

80

900KVT-21

5600

1555.6

22.9

590

500

YLS5003 - 10

82

7120 + 1630N

6300

1750

21

84

7000

1944.4

18.6

80

900KVT-21A

5320

1477.8

20.7

590

450

YLS5002 - 10

81

7120 + 1630N

5985

1662.5

18.8

82.5

6650

1847.2

16.8

79

900KVT-33

5600

1555.6

35.1

590

800

YLS6302 - 10

82

7410 + 1630N

6300

1750

33

74

7000

1944.4

29.7

80

900KVT-33A

5320

1477.8

31.7

590

710

YLS5602 - 10

81

7410 + 1630N

5985

1662.5

29.4

83

6650

1847.2

26.8

79

900KVT-33B

5040

1400

28.4

590

630

YLS5005-10

80

7410+1630N

5670

1575

26.4

82

6300

1750

24.1

78

900KVT-52

5600

1555.6

56.7

590

1250

YLS6303-10

80.5

7820+1630N

6300

1750

52.2

82

7000

1944.4

48.3

78

900KVT-52A

5320

1477.8

51.2

590

1120

YLS6302-10

79

7820+1630N

5985

1662.5

46.7

81

6650

1847.2

43.6

77

900KVT-52B

5040

1400

45.9

590

1000

YLS6301-10

78

7820+1630N

5670

1575

42

80

6300

1750

39.1

76

1000KVT-25

7000

1944.4

28.7

590

800

YLS5602-10

82

8240+1950N

8400

2333.3

25

85

9400

2611.1

22.4

81

1000KVT-25A

6650

1847.2

25.8

590

710

YLS5601-10

81

8240+1950N

7980

2216.7

22.7

84

8930

2480.1

20.2

80

1000KVT-39

7000

1944.4

43.7

590

1250

YLS6303-10

81

8510+1950N

8400

2333.3

39

85

9400

2611.1

35.1

82

1000KVT-39A

6650

1847.2

39.4

590

1120

YLS6302-10

80

8510+1950N

7980

2216.7

39.4

84

8930

2480.1

35.2

81

1000KVT-39B

6300

1750

35.4

590

900

YLS5603-10

80

8510+1950N

7560

2100

31.9

83

8460

2350

28.8

80

1000KVT-63

7000

1944.4

68.2

590

2000

YL2000-10/1730-1

81

8920+1950N

8400

2333.3

63

84

9400

2611.1

58.1

80

1000KVT-63A

6650

1847.2

61.6

590

2000

YL2000-10/1730-1

80

8920+1950N

7980

2216.7

56.5

83

8930

2480.1

52.4

80

1000KVT-63B

6300

1750

55.2

590

1600

YL1600-10/1730-1

79

8920+1950N

7560

2100

50.7

82

8460

2350

47.1

79



Applications:


• Water Treatment

Sewage treatment plant

Power plant

Steel plant

Mine

• Chemical slurries

• Tailings

• Mill grinding

• Ash handing

Municipal water supply

• Drainage

• Farm irrigation

• Flood control projects






Related Products
Categories
Hot Products
Contact Us
