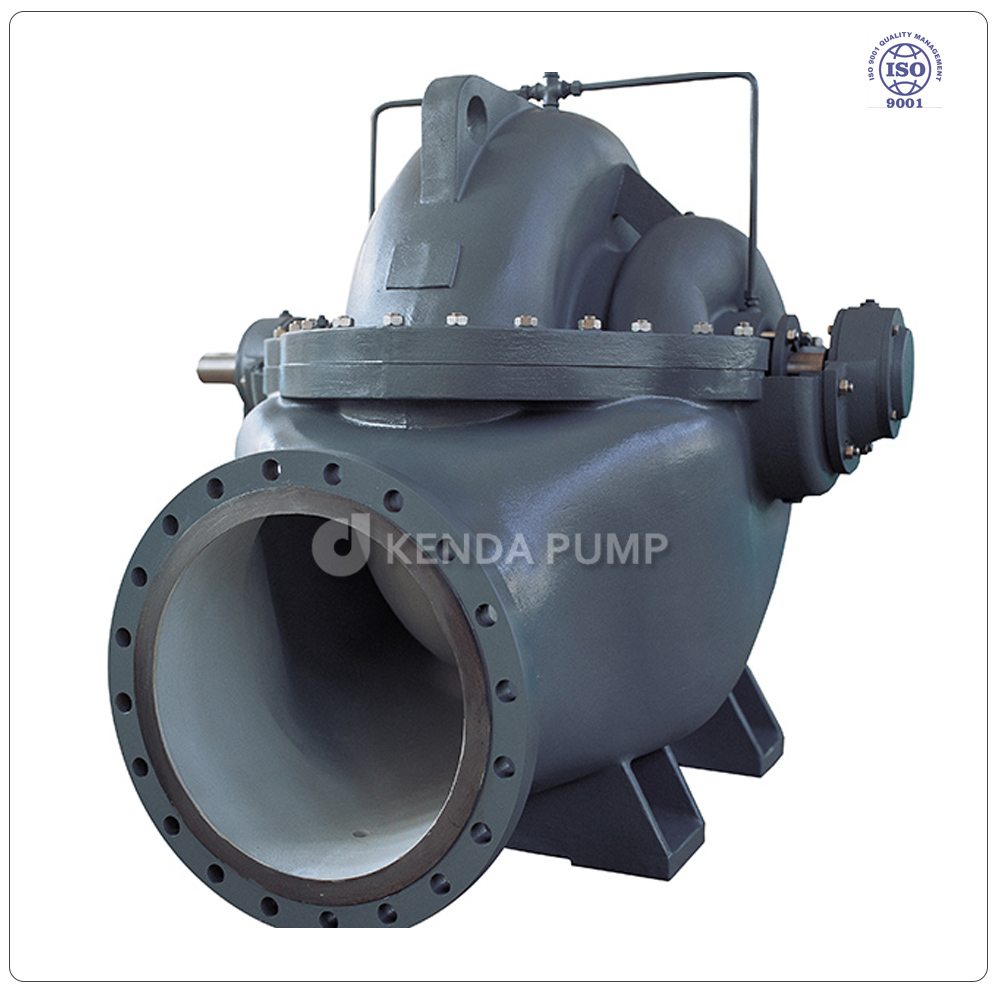

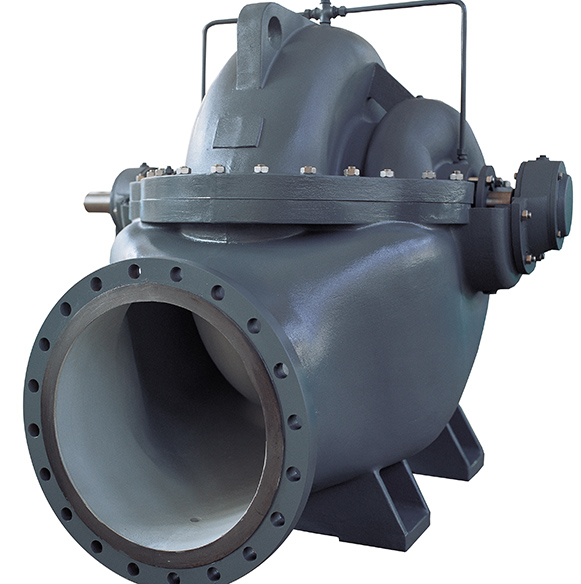

KLS Series Single-stage Double-suction Split-case Pump | KLS80-210 to KLS350-510

KLS Series Single-stage Double-suction Split-case Pump | KLS80-210 to KLS350-510 | Kenda Pump

SPECIFICATIONS:
Discharge Diameter: DN 80 ~ 800 mm
Flow Rate Range: 83.5 ~ 9810 m³/h
Head Range: 13.8 ~ 160 m
Operating Temperature: +1℃ ~ +80℃
Inlet Pressure: Up to 0.6 MPa (depending on material)
Looking for a high-efficiency Single-stage Double-suction Split-case Pump? The KLS Series features a robust split-case design, ideal for heavy-duty water transport. View specs & get a quote today!

Description
Inquiry

Kenda KLS series single-stage double-suction split-case pump is a new generation of products developed by integrating advanced international double-suction pump technology with high-efficiency hydraulic models. Designed for municipal water supply, HVAC cooling systems, and industrial irrigation. Its axially split casing allows for easy access to internal components without disturbing piping—perfect for reducing downtime in critical applications.

Technical Advantages

Easy Maintenance: Featuring a horizontally split-case design, it allows for internal inspections and parts replacement without dismantling the inlet/outlet pipelines or the motor.

Smooth Operation: The symmetrical double-suction impeller design theoretically balances axial forces automatically, resulting in low vibration and noise during operation.

Flexible Configuration: Supports both horizontal and vertical installation (for small models); sealing options include packing seals or mechanical seals; the direction of rotation can be customized upon request.

Long Service Life: The shaft is completely sealed and does not come into contact with the medium, effectively preventing corrosion and significantly extending the operating life.

Product Classification

Based on the medium being transported, the KLS series offers three professional configurations:

Standard Type: Designed for clean water and pure liquids with physical and chemical properties similar to clean water.

Wear-resistant Type: Specially engineered for silty rivers and water with high sand content (solid particles ≤ 80mg/L), offering higher efficiency and enhanced wear resistance.

Corrosion-resistant Type: Utilizes specialized corrosion-resistant materials and mechanical seals, suitable for transporting various chemically corrosive liquids.

Structure

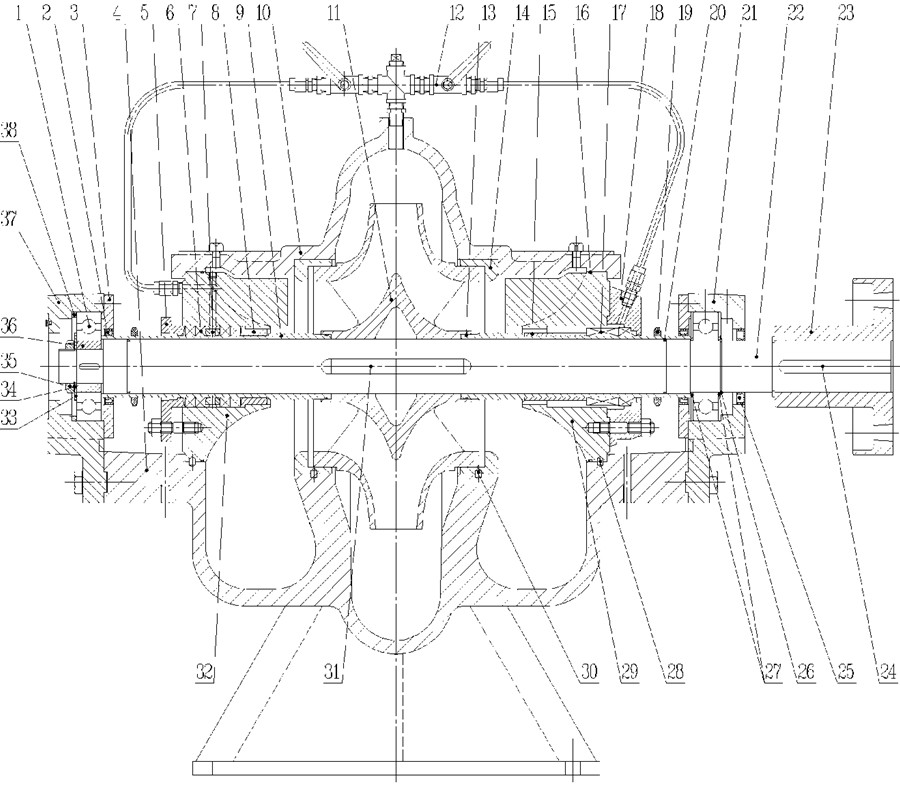

Horizontal Structure Diagram for Small KLS Pumps (KLS80-210 to KLS350-510)

1	Bearing	11	Impeller	21	Drive-end Bearing House	31	Type B Flat Key
2	Skeleton Oil Seal	12	Flushing Pipe Assembly	22	Shaft	32	Seal Body
3	Bearing End Cover	13	O-ring	23	Pump Coupling	33	Retaining Ring / Stop Ring
4	Pump Casing	14	Casing Seal Ring	24	Type C Flat Key	34	Lock Nut Washer
5	Packing Gland	15	Mechanical Seal Bushing	25	Skeleton Oil Seal	35	Lock Nut
6	Packing	16	O-ring	26	Circlip for Shaft	36	Bearing Inner Sleeve
7	Lantern Ring / Packing Ring	17	Mechanical Seal	27	Bearing Press Ring	37	Non-drive-end Bearing House
8	Packing Sleeve	18	Mechanical Seal Gland	28	Cylindrical Pin	38	Bearing Locating Ring
9	Shaft Sleeve	19	Water Slinger / Deflector	29	Seal Body
10	Pump Cover	20	O-ring	30	Cylindrical Pin

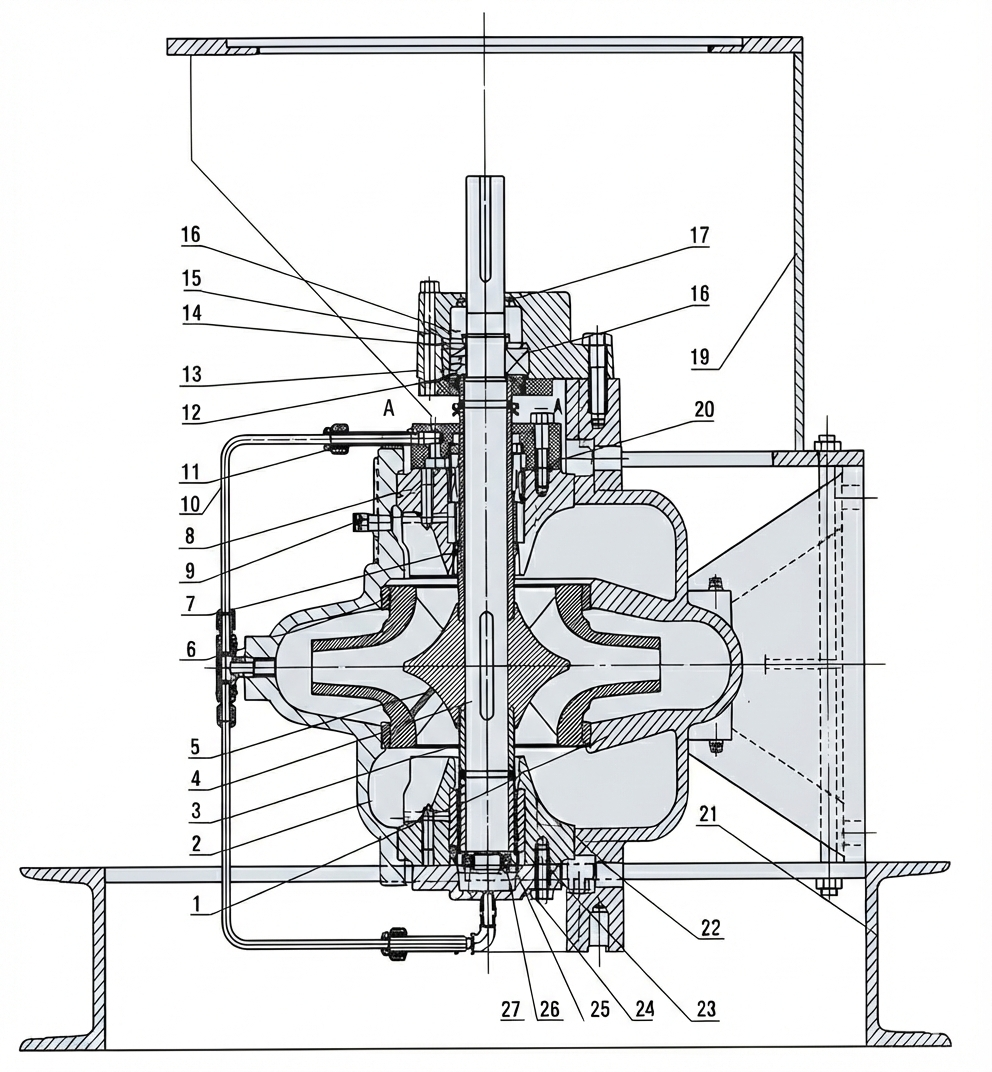

Vertical Structure Diagram for Small KLS Pumps (KLS80-210 to KLS350-510)

1	Pump Casing	9	Seal Body	17	Skeleton Oil Seal	25	Stop Washer
2	Pump Cover	10	Flushing Pipe Assembly	18	Bearing	26	Lock Nut
3	Lower Shaft Sleeve A	11	Mechanical Seal Gland or Packing Gland	19	Motor Bracket	27	Guide Bearing
4	Shaft	12	Bearing Gland	20	Mechanical Seal or Packing Seal
5	Impeller	13	Bearing House	21	Base
6	Casing Seal Ring	14	Bearing Locating Ring	22	O-ring
7	Shaft Sleeve	15	Bearing Retaining Ring	23	Lower Shaft Sleeve B
8	Air Vent Valve	16	Circlip	24	Guide Bearing Gland

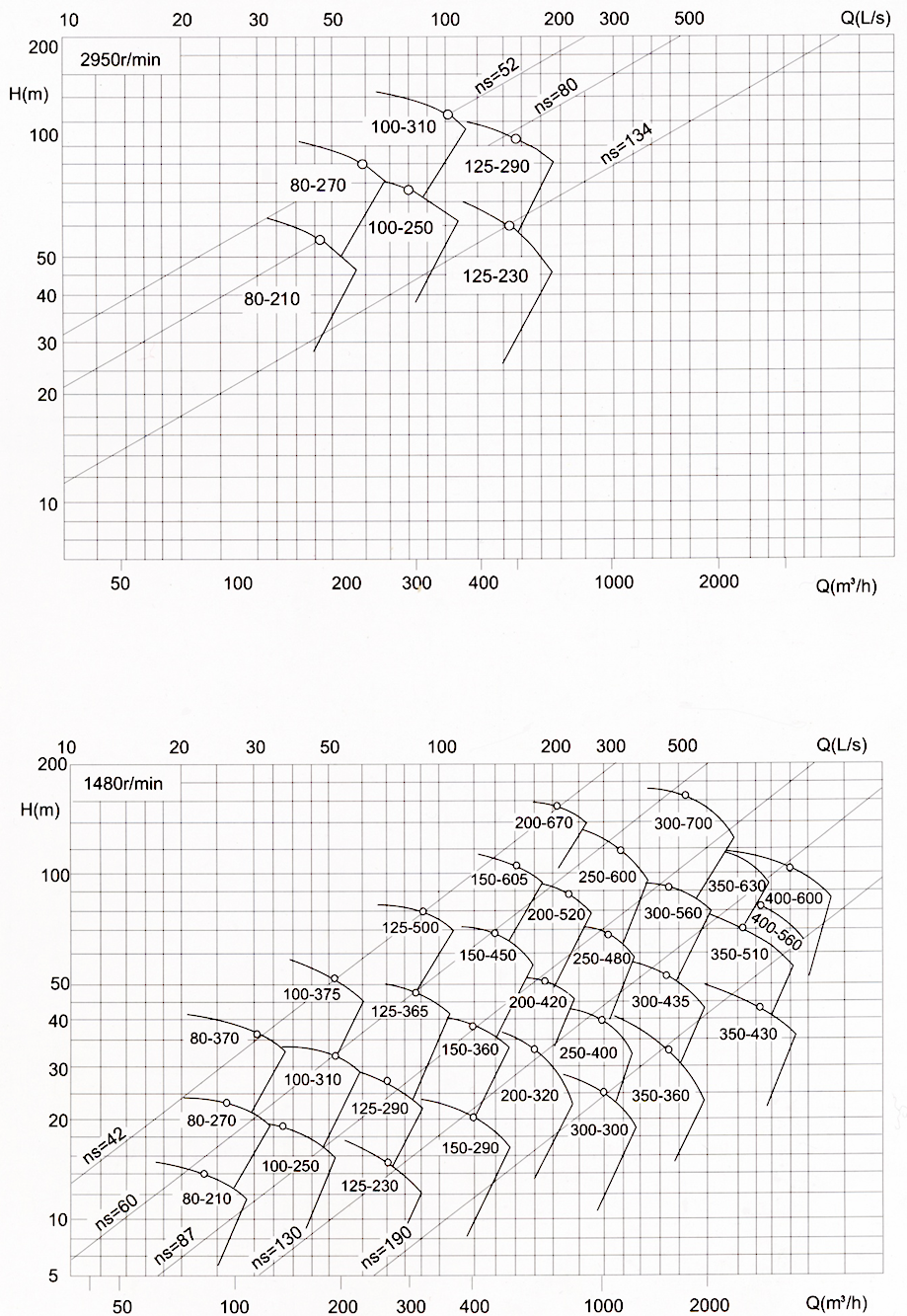

Quick Selection Chart

KENDA KLS series single-stage double-suction split-case pump Performance Curve Chart - Flow vs Head selection guide for split-case pump.

Technical Specifications Chart

NO.	Type		Capacity		Head	Speed	Motor power	Eff.	(NPSH)r	Weight
			m³/h	l/s	(m)	(r/min)	(kW)	(%)	(m)	(kg)
1	80-210		22	6	17	1480	5.5	82	1.6	197
			83.5	23	13.8
			121	34	10
2		A	22	6	14.8		4	81
			76	21	11.8
			108	30	8.7
3		B	18	5	10.6		3	80.5
			72	20	9.8
			97	27	7.7
4		C	14	4	9		3	78
			65	18	8.5
			83	23	7.9
5			61	17	60.5	2950	37	82	4.5	197
			165	46	55
			241	67	50
6		A	58	16	58		30	81
			155	43	47.2
			220	61	34
7		B	115	15	49.2		30	80.5
			144	39	38.5
			173	55	30.2
8		C	50	14	42		22	77.8
			130	36	33.5
			169	47	27.5
9	80-270		26	7.2	24.6	1480	11	78.5	2.3	206
			105	29	22.5
			137	38	18.1
10		A	25	7	22		11	78
			97	27	19.2
			130	36	16
11		B	22	6	19.5		7.5	78
			90	25	16.2
			115	32	13
12		C	22	6	16.8		5.5	76
			79	22	13
			104	29	10.5
13			80	22	107	2950	90	78	6.3	206
			208.8	58	90
			280.8	78	77.5
14		A	79	22	92.3		75	77
			191	53	77.5
			234	65	68.5
15		B	76	21	77.5		55	76
			176	49	63.2
			220	61	55
16		C	76	21	63.8		37	75
			155	43	50
			202	56	44.7
17	80-370		29	8	43.5	1480	22	71.5	2.8	242
			115	32	38.9
			151	42	29.5
18			25	7	37.7		15	70.5
			105	29	33.5
			133	37	25
19			21.6	6	32		15	70
			97.2	27	27.7
			118.8	33	21.8
20			22	6	25.8		11	67.5
			86	24	18.5
			100	28	13.1
21	100-250		108	11	23.2	1480	11	82.5	3	245
			148	40	18.5
			187	59	13.1
22		A	36	10	20		11	81
			133	37	15.7
			192	53	11.5
23		B	36	10	17		7.5	79
			122	34	13.5
			172	48	10.2
24		C	32	9	14.8		5.5	77.5
			115	32	11
			155	43	8.8
25			148	41	90	2950	90	82.5	9.5	245
			288	80	75
			374	104	82
26		A	122	34	88		75	80.5
			266	74	63.2
			338	94	52.9
27		B	68	19	67.8		55	79
			241	67	52
			324	90	43.5
28		C	61	17	57.2		45	78
			223	62	44.8
			295	82	36
29	100-310		47	13	38.1	1480	22	80	3.5	260
			187	52	31
			227	63	25.7
30		A	44	12	33.4		18.5	79.6
			173	48	27
			205	57	22.8
31		B	40	11	28		15	79.3
			158	44	23
			184	51	18.5
32		C	36	10	23.2		11	79
			144	40	18.8
			165	46	16.4
33			184	51	148.5	2950	200	80	11.5	260
			367	102	123
			450	125	102
34		A	140	39	130		132	79.6
			342	95	106
			410	114	89.5
35		B	100	28	110		110	79.3
			313	87	90
			270	103	77.3
36		C	119	33	93.5		90	79
			245	68	74
			324	90	63.8
37	100-375		68	19	63.2	1480	45	73	2.9	310
			187	52	51.7
			241	67	39
38		A	64.8	18	53		37	72
			169.2	47	44.5
			212.4	59	34
39		B	61	17	46		30	71
			158	44	38
			190	53	31
40		C	58	16	35.5		18.5	69
			142	39	30.3
			178	49	22.5
41	125-230		100	28	20.2	1480	18.5	85.5	3	340
			274	76	15
			370	103	9.1
42		A	94	26	18.5		15	84.5
			259	72	13.2
			331	92	8.5
43		B	176	23	16		15	82.5
			230	65	10.2
			270	79	7.6
44		C	162	22	13.2		11	77.5
			198	59	8.4
			241	67	6.5
45			140	39	83.5	2950	132	85.5	9.5	340
			532	148	60
			716	199	40
46		A	122	34	73		110	84
			497	138	52
			652	181	36
47		B	119	33	63.5		75	82
			454	126	43.5
			550	153	32
48		C	104	29	63		75	77
			410	114	34
			460	128	30
49	125-290		100	28	32.5	1480	30	84	3.1	390
			270	75	27
			374	104	21
50		A	79	22	27.8		22	82
			245	68	21.8
			349	97	15.2
51		B	75	21	23.5		18.5	80
			220	61	18
			310	86	12.5
52		C	61	17	19		15	78
			194	54	14.2
			270	75	10.5
53			382	106	120	2950	220	84	9.6	390
			535	150	108
			640	178	93
54		A	285	79	103.5		160	82
			483	134	88
			630	175	77.8
55		B	190	53	92		132	80
			439	122	72
			605	168	60
56		C	90	25	80		110	78
			389	108	57
			500	139	43.5
57	125-365		126	35	53.1	1480	75	80	2.7	410
			310	86	47.2
			435	121	37.8
58		A	105	29	45		45	79
			275	79	47
			396	110	37.5
59		B	94	26	36.9		37	78
			255	71	31.5
			349	97	25
60		C	86	24	27.9		30	76
			223	62	23.9
			396	110	18.8
61	125-500		108	30	86	1480	110	80	3.5	450
			328	91	76
			382	106	71
62		A	100	28	74.5		90	78.5
			306	85	66.5
			349	97	55
63		B	79	22	64.8		75	77
			280	78	56.2
			300	83	51.5
64		C	61	17	54.5		45	76
			252	70	44
			270	75	40.8
65	150-290		158	44	27.3	1480	37	87	3.8	380
			443	123	21
			608	169	14.2
66		A	151	42	25		30	86
			410	114	18.1
			550	153	12.5
67		B	130	36	22.5		22	84
			367	102	15
			478	133	11.7
68		C	112	34	17.4		18.5	77
			338	94	11.5
			396	110	9.7
69	150-360		180	50	45.8	1480	75	85	4.1	420
			447	124	38
			590	164	31.2
70		A	176	49	38.6		55	83
			403	112	31
			580	161	22.4
71		B	310	45	33.1		37	81
			364	101	25
			496	138	18.1
72		C	151	42	27.6		30	78
			324	90	20
			421	117	14.8
73	150-450		202	56	76.1	1480	132	82	4	540
			515	143	66
			640	178	57.1
74		A	190	53	64		110	81
			468	130	54.5
			601	167	45
75		B	180	50	52.3		75	80
			418	116	43.5
			540	150	35
76		C	176	49	42		55	78.5
			375	104	35
			468	130	27.8
77	150-605		202	56	121	1480	250	80	4.5	650
			584	162	105
			730	203	92
78		A	180	50	105		200	79
			536	149	88.5
			658	183	80
79		B	169	47	90.8		160	78
			493	137	75
			620	172	68
80		C	151	42	77.2		132	77
			450	125	61.5
			530	147	55.9
81	200-320		248	69	40	1480	75	87.5	3.3	500
			695	193	30
			940	261	20
82		A	241	67	34.8		75	86.5
			640	178	25.5
			846	235	17.3
83		B	230	64	30.8		55	85
			587	163	21.2
			750	208	16.2
84		C	220	61	25		37	79
			530	147	17
			608	169	15.2
85	200-420		266	74	62.5	1480	132	86.5	4.2	560
			710	197	52
			990	275	40
86		A	248	69	64		110	84.5
			642	178	42.6
			896	249	30.7
87		B	238	66	46		90	83
			587	163	35.5
			781	217	24.8
88		C	220	61	38.5		75	81
			525	146	28.5
			601	167	20.8
89	200-520		475	132	102	1480	280	83	5	840
			817	227	91
			1080	300	77.5
90		A	460	128	86		250	82
			748	208	76.6
			965	268	66.2
91		B	440	122	71		200	80
			688	191	62.5
			905	251	52.3
92		C	421	117	54.8		132	78.5
			630	175	47.5
			795	221	41.7
93	200-670		280	78	167	1480	450	80	5	1200
			793	220	150
			936	260	139.8
94		A	270	75	144		355	78.5
			730	203	126.8
			900	250	115
95		B	260	72	124		315	77
			670	186	107
			864	240	93
96		C	248	69	103		250	76
			637	177	88
			770	214	80
97	250-400		400	111	50	1480	160	88	6	930
			1052	292	39
			1480	403	28
98		A	382	106	44.6		132	86
			968	269	33
			1310	364	24
99		B	378	105	38.1		110	83
			914	254	27.1
			1159	322	20.2
100		C	350	97	31.8		75	77.5
			842	234	20.1
			990	275	16.1
101	250-480		421	117	82.6	1480	280	87	7.7	1200
			1175	326	66
			1610	447	50
102		A	400	111	69		220	85
			1073	298	55
			1480	403	41.5
103		B	370	103	58		200	83
			975	271	45.5
			1249	347	36
104		C	331	92	49.4		160	80
			904	251	37.5
			1090	303	31.2
105	250-600		800	222	131	1480	560	84	7.8	1310
			1243	345	116
			1642	456	97.8
106		A	750	208	115.1		450	83.5
			1155	321	99.8
			1598	444	79.2
107		B	698	194	95.2		315	83
			1051	292	83
			1480	411	63
108		C	652	181	77.8		250	82.5
			968	269	66.2
			1360	378	50
109	300-300		500	139	36	1480	110	86	4.6	900
			1098	305	24.5
			1476	410	16.9
110		A	478	133	31.9		90	84.5
			1018	283	20
			1425	396	12.1
111		B	460	128	26.4		75	82
			968	269	15.6
			1288	358	9.1
112		C	439	122	22.3		45	80
			922	256	11.4
			1170	325	7.5
113	300-435		698	194	67.7	1480	315	88	5.2	1200
			1680	466	53
			2379	661	37
114		A	658	183	59.3		280	86.5
			1576	438	45
			2098	583	32.2
115		B	619	172	50		200	84
			1476	410	36.5
			1800	500	27.5
116		C	601	167	40.8		160	79
			1360	378	27.5
			1480	403	24.3
117	300-560		698	194	115.2	1480	630	86	4.2	1650
			1750	486	94
			2350.8	653	75.9
118		A	680	189	92		450	85.5
			1645	457	76
			2170	603	61.4
119		B	651	181	77.3		355	85
			1573	437	62
			2131	592	46.8
120		C	619	172	65		280	83.5
			1515	421	50
			1980	550	37.5
121	300-700		900	250	183	1480	1120	85	3.5	1850
			1836	510	160
			2100	583	150.7
122		A	961	267	159.8		900	84.6
			1735	482	136
			2030	564	126
123		B	800	222	135		630	84.3
			1624	451	112
			1879	522	104
124		C	698	194	110.7		560	84
			1537	427	91
			1598	444	77.3
125	350-360		601	167	45.3	1480	200	86.5	6.2	1210
			1733	481	32
			2278	633	20.6
126		A	580	161	40		160	85
			1692	470	26.5
			2160	600	17
127		B	561	156	33.8		132	83
			1642	456	21
			2084	578	12.7
128		C	540	150	27.9		110	80.5
			1602	445	15
			1900	528	8.9
129	350-430		1000	278	59	1480	450	87.5	8.5	1630
			2745	763	43.5
			3500	972	31
130		A	950	264	50.5		355	85.5
			2635	732	35
			3448	958	22.2
131		B	900	250	43		280	84
			2563	712	27.5
			3250	903	18.3
132		C	890	247	36		220	81
			2484	690	21.5
			3200	889	13
133	350-510		1350	375	94	1480	630	88.5	6.7	1500
			2610	725	70
			3700	1028	48.2
134		A	1980	550	67.5		560	87
			2434	676	60
			2880	800	51
135		B	1872	520	56		400	86
			2304	640	49
			2628	730	42
136		C	1800	500	42.8		315	79
			2088	580	37.5
			2376	660	32.5

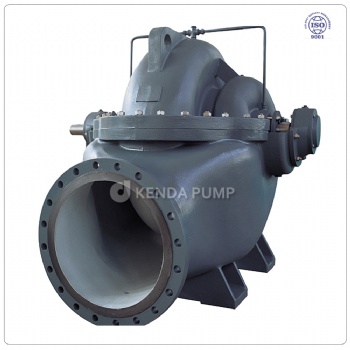

Click here to view the specifications for Split-case Pump models KLS350-630 to KLS800-990.

Installation and Maintenance Guide

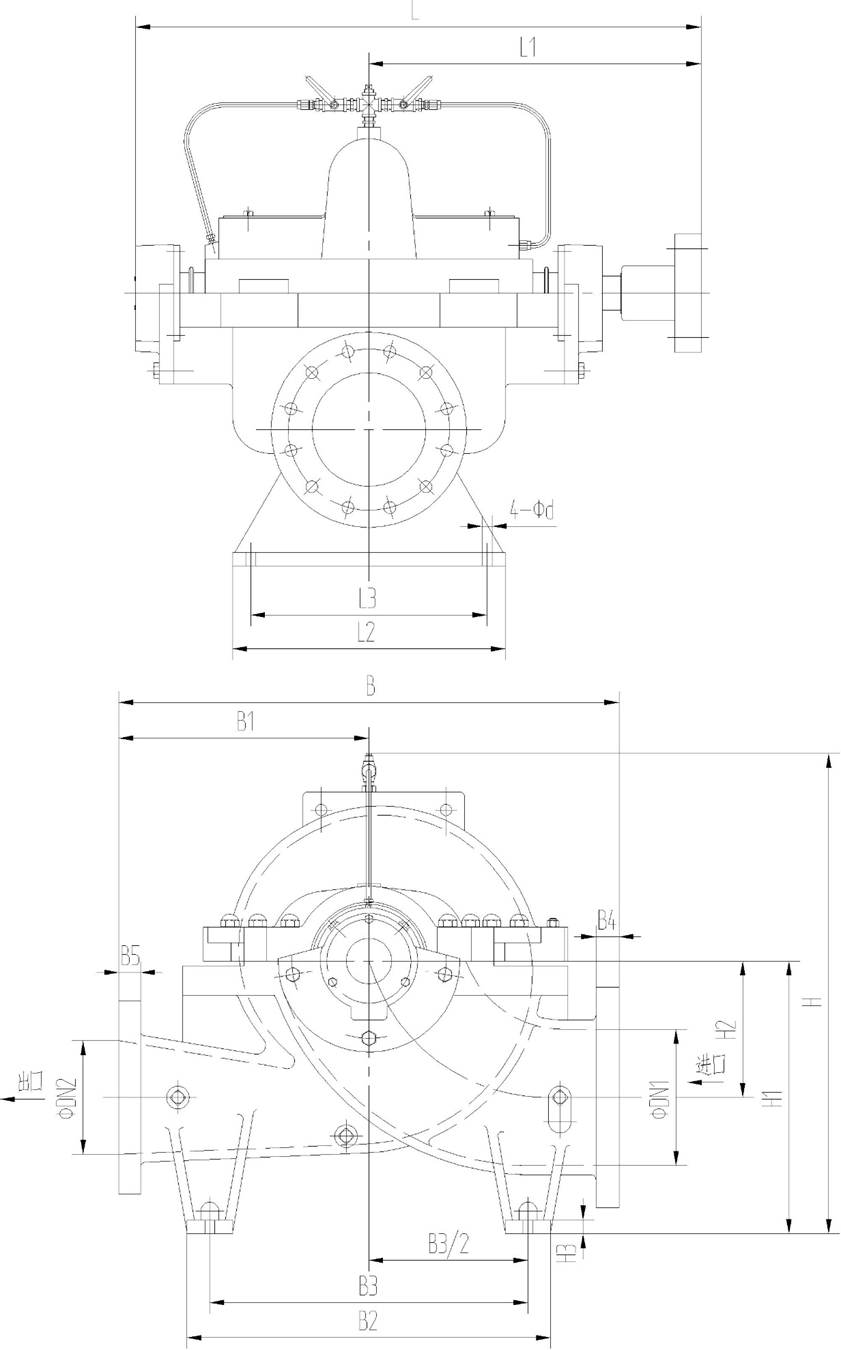

Outline Dimensions Diagram for Small KLS Pumps (KLS80-210 to KLS350-510)

Outline Dimensions Table for Small KLS Pumps (Unit: mm)

Type	L	L1	L2	L3	B	B1	B2	B3	B4	B5	H	H1	H2	H3	4-φd
80-210	702	402	320	270	600	300	410	340	26	26	590	315	140	30	4-φ18
80-270											605
80-370					660	330					645
100-250							470	400	30	26	655	355	170
100-310											685
100-375					370	370			26	24	715
125-230	863	498	390	340	740	370	530	450	30	26	725	400	200	30	4-φ18
125-290											740
125-365											765
125-500					900	450	630	560			805
150-290	863	498	400	340	800	400	530	450	30	30	745	400	200	30	4-φ18
150-360			390	340							770			35
150-450	976	555	480	430	900	450	630	560			715				4-φ22
150-605					1100	500	770	700			970	500	300
200-320	976	555	480	430	900	450	630	560	32	30	880	500	240	35	4-φ22
200-420					1000	500					910
200-520	1088	624			1100	500	770	700			1025	560	300
200-670				400	1200	550	800	700			1140	600	350
250-400	1088	624	480	400	1000	500	800	700	36	32	1045	600	300	42	4-φ22
250-480	1196	683	600	520	1100	550					1067
250-600					1200	550					1160	630	350
300-300	1088	624	480	400	1050	500	800	700	40	36	1085	630	300	42	4-φ22
300-435	1196	683	600	520	1200	550			44	36	1152	670	350
300-560	1383	788			1350	650	1050	950	48	40	1235	710	350
300-700					1400	650					1345	750	400
350-360	1196	683	600	520	1200	550	800	700	44	40	1190	670	350	42	4-φ22
350-430	1383	788			1400	650	1050	950			1310	750	400
350-510					1350	650					1270

Applications

The KLS Series is engineered for high-flow water transfer across diverse sectors:

Municipal: Urban water supply, boosting stations, and flood control.

HVAC: Cooling tower circulation and district heating systems.

Industrial: Process water for power plants, steel mills, and fire-fighting.

Agriculture: Large-scale irrigation and drainage projects.

FAQ

Q1: What are the maintenance benefits of the split-case design?

A: The axially split casing allows for easy access to internal components (impeller, bearings, seals) without disturbing the piping, significantly reducing downtime and maintenance costs.

Q2: Can this pump be installed vertically?

A: Yes. While horizontal is standard, the KLS series supports both horizontal and vertical configurations to suit your pump room layout.

Q3: What materials are available?

A: Beyond standard cast iron, we offer ductile iron, stainless steel (304/316), and bronze to handle corrosive or abrasive fluids.

Q4: Is it suitable for wastewater?

A: It is designed for clean water or liquids with similar properties. For fluids with minor solids, please contact us to customize the seal and material selection.

Get A Free Quote Now

Related Products

KLS Series Single-stage Double-suction Split-case Pump | KLS80-210 to KLS350-510 | Kenda Pump

Kenda KLS Series Single-stage Double-suction Split-case Pumps deliver high efficiency for water works, HVAC, and irrigation. Features a robust split design for easy maintenance, low vibration, and long service life. View specs and request a free quote tod
Heavy Duty Metal Lined Slurry Pump for Mining & Tailings | Kenda Pump

Kenda KH metal-lined slurry pumps are 100% interchangeable with the Warman AH series, offering seamless parts replacement and superior wear life. Ideal for heavy-duty mineral processing, gold mining tailings, and coal prep abrasive slurry transfer.
KLS Series Single-stage Double-suction Split-case Pump | KLS350-630 to KLS800-990 | Kenda Pump

Kenda KLS Series Single-stage Double-suction Split-case Pumps deliver high efficiency for water works, HVAC, and irrigation. Features a robust split design for easy maintenance, low vibration, and long service life. View specs and request a free quote tod
Metal Lined Slurry Pump

Kenda KH metal-lined slurry pumps are 100% interchangeable with the Warman AH series, offering seamless parts replacement and superior wear life. Ideal for heavy-duty mineral processing, gold mining tailings, and coal prep abrasive slurry transfer.

KLS Series Single-stage Double-suction Split-case Pump | KLS80-210 to KLS350-510 | Kenda Pump

Applications

Related Products

Standard Chemical pump

KLS Series Single-stage Double-suction Split-case Pump | KLS350-630 to KLS800-990 | Kenda Pump

Ceramic Chemical Pump

Categories

Hot Products

KLS Series Single-stage Double-suction Split-case Pump | KLS80-210 to KLS350-510 | Kenda Pump

Heavy Duty Metal Lined Slurry Pump for Mining & Tailings | Kenda Pump

KLS Series Single-stage Double-suction Split-case Pump | KLS350-630 to KLS800-990 | Kenda Pump

Metal Lined Slurry Pump

Contact Us

Products Catalogue

Contacts

Contact Form
