Kenda Standard Chemical Pump

Standard Chemical pump

Specification:
Flow: 0.5-2000m3/h
Head: ≤ 160m
Working Pressure: ≤1.6MPa
Working Temperature: ≤ 120℃
Material: Carbon steel, Stainless steel, Super duplex, Hastelloy, Titanium etc.

Description
Inquiry

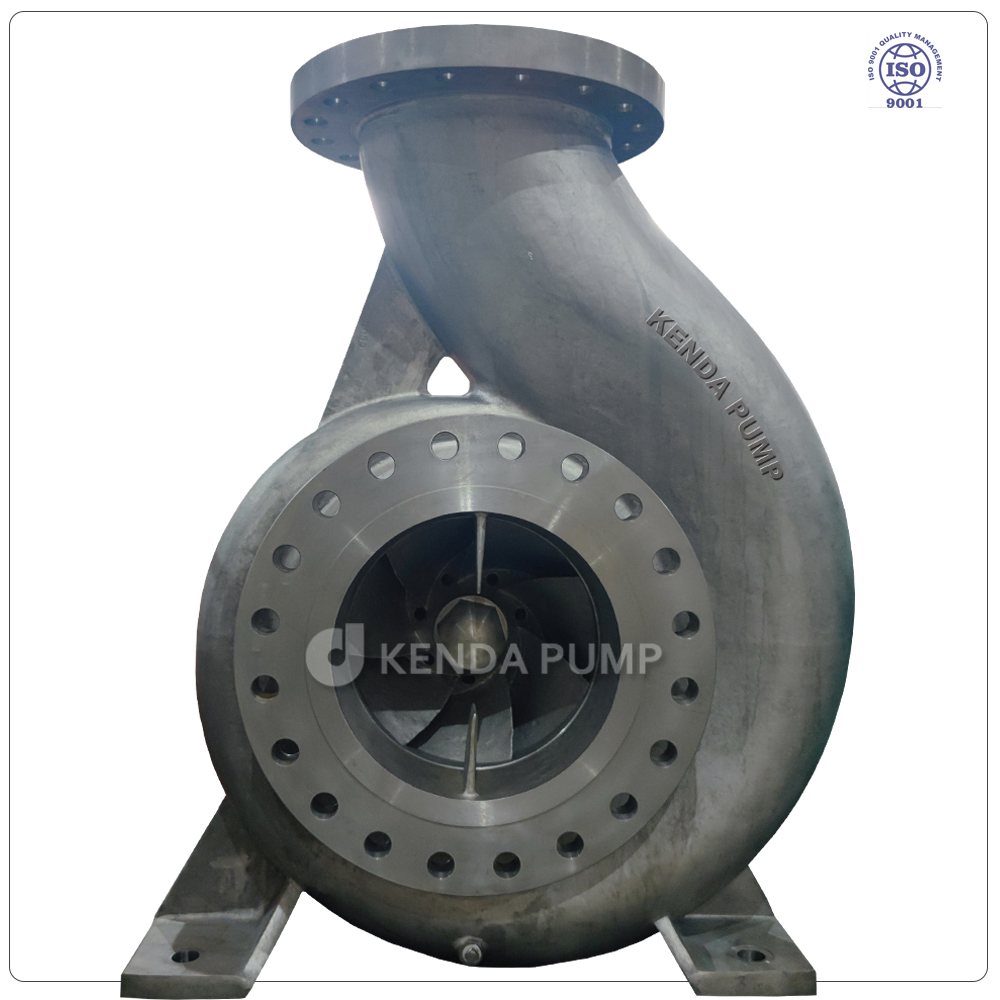

Kenda KC Series Standard Chemical Pump

The pumps of series KC are horizontal single stage, single suction, centrifuge, process pumps. Their dimensions and performances are in conformity with DIN 24256/ISO 2858.

Handling of cold or hot, liquids neutral - or corrosive liquids, clean liquids or liquids containing solids, particularly in. the chemical and petrochemical industries, refineries, the pulp and paper industry, the sugar industry.

Performance-range

Capacities up to 0.5～2000m³/h

Heads up to 160m

Work pressure up to 1.6MPa

Work temperature up to 120℃

Flat characteristic curve, low required NPSH, high pump efficiency. These characteristics are maintained even under partial load.

Design characteristic

- Designed with closed impellers and ample shaft diameters to ensure stable operation. Pump casings of some specifications are designed as double - volute ones to balance radial forces.

-“Back pullout” structure is used in design. Hanger, include shaft, impeller form an assembly part. An extended coupling is used, and the entire machine can be repaired without removing the pipeline and motor, making maintenance convenient.

- The force at shaft gland is balanced by balance hole at back blade of impeller. Single and double terminal face mechanical seal are used.

- When the work temperature ≥90℃, a water - cooled bearing frame is adopted.

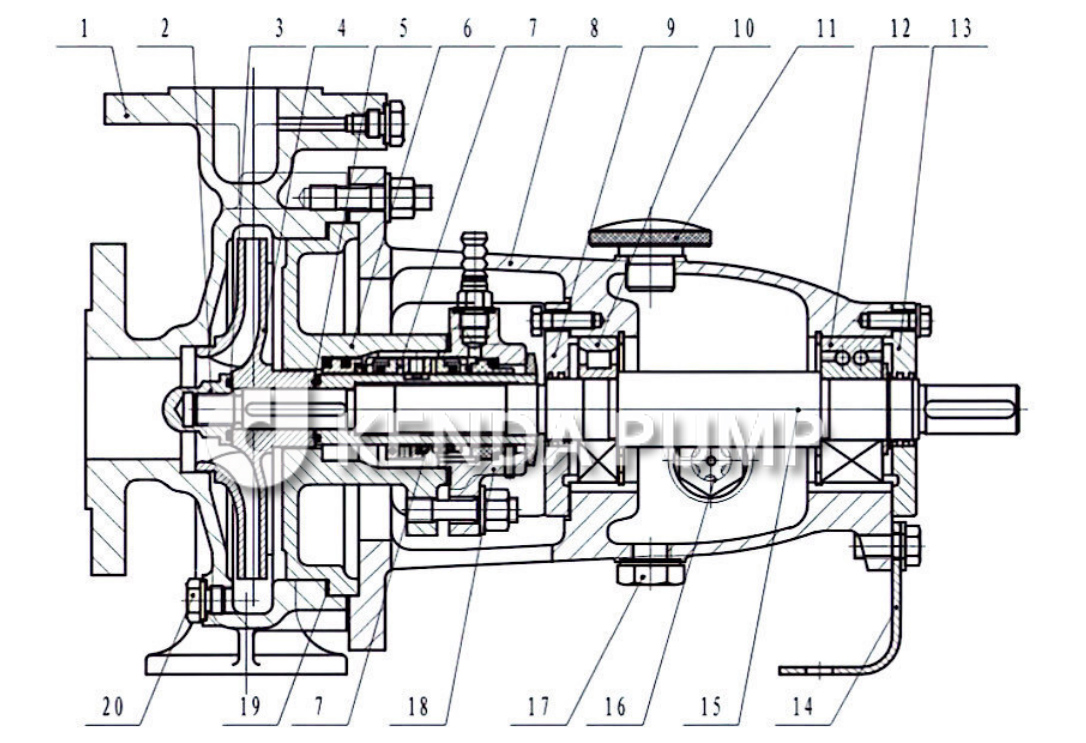

Kenda KC Series Chemical Pump Structure

1	Casing	6	Casing cover	11	Oil filler plug	16	Oil level sight glass
2	Impeller cap	7	Mechanical seal	12	Bearing	17	Plug
3	O - ring	8	Bearing support	13	Back bearing cover	18	Mechanical seal cover
4	Impeller	9	Front bearing cover	14	Supporting foot	19	Washer
5	O - ring	10	Bearing	15	Shaft	20	Plug

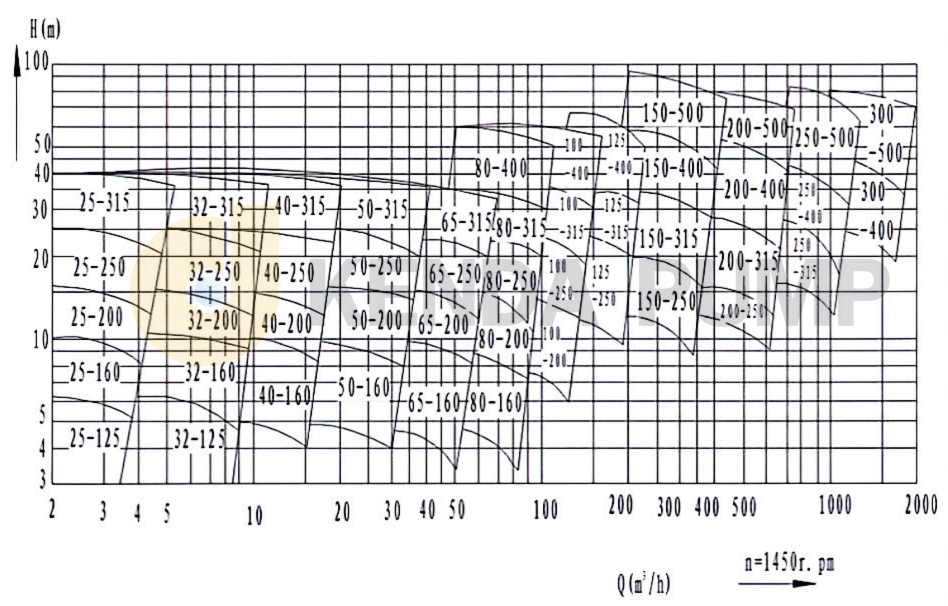

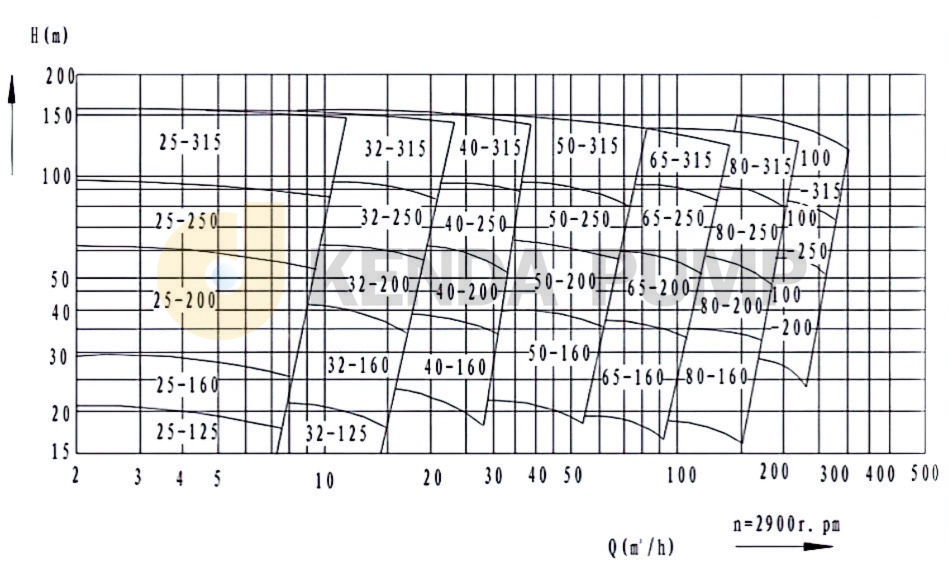

Kenda KC Series Chemical Pump Performance Curve

Kenda-Chemical-Pump-Performance-Curve 2.jpg

Kenda KC Series Chemical Pump Performance Table

Size	Impeller Type	Rated speed n=2900rpm						Rated speed n=1450rpm
		Flow m³/h	Head m	Density γ=1.00		Density γ=1.35		Flow m³/h	Head m	Density γ=1.00		Density γ=1.35
				Motor						Motor
				Kw		Kw				Kw		Kw
KC25-125	A	6.3	20	1.1	Y802-2	1.5	Y90S-2
KC25-125	B	5.6	15	0.75	Y801-2	1.1	Y802-2
KC25-160	A	6.3	32	2.2	Y90L-2	2.2	Y90L-2
KC25-160	B	5.6	28	1.5	Y90S-2	2.2	Y90L-2
KC25-200	A	6.3	50	4	Y112M-2	5.5	Y132S-2
	B	5.9	44	3	Y100L-2	4	Y112M-2
	C	5.3	35	2.2	Y90L-2	3	Y100L-2
KC25-250	A	6.3	80	7.5	Y132S-2	11	Y160M-2
	B	5.9	70	5.5	Y132S-2	7.5	Y132S-2
	C	5.5	60	4	Y112M-2	5.5	Y132S-2
KC25-315	A	6.3	150	15	Y160M-2	22	Y180M-2
	B	5.9	125			22	Y180M-2
	C	5.3	100			18.5	Y160L-2
KC32-125	A	15	20	2.2	Y90L-2	3	Y100L-2
KC32-125	B	10	15	1.5	Y90S-2	2.2	Y90L-2
KC32-160	A	20	36	4	Y112M-2	5.5	Y132S-2	11	9	1.1	Y90S-4	1.1	Y90S-4
	B	18	34	4	Y112M-2	5.5	Y132S-2	10	8
	C	17	28	3	Y100L-2	4	Y112M-2	9	7
	D	15	20	2.2	Y90L-2	3	Y100L-2	6	5
KC32-200	A	20	50	7.5	Y132S-2	11	Y160M-2	10	13	1.5	Y90L-4	1.5	Y90L-4
	B	18	48	7.5	Y132S-2	11	Y160M-2	9	12
	C	16	40	5.5	Y132S-2	7.5	Y132S-2	8	10
	D	15	30	4	Y112M-2	5.5	Y132S-2	8	8
KC32-250	A	20	85	11	Y160M-2	18.5	Y160L-2	11	20	2.2	Y100L-4	3	Y100L-4
	B	20	75	11	Y160M-2	18.5	Y160L-2	10	19			3	Y100L-4
	C	18	65	11	Y160M-2	15	Y160M-2	9	15			2.2	Y100L-4
	D	15	50	7.5	Y132S-2	11	Y160M-2	8	11			2.2	Y100L-4
KC32-315	A	20	140	22	Y180M-2	30	Y200L-2	11	36	4	Y112M-4	5.5	Y132S-4
	B	20	130	22	Y180M-2	30	Y200L-2	10	32	3	Y100L-4	4	Y112M-4
	C	18	100	15	Y160M-2	22	Y180M-2	9	24	2.2	Y100L-4	3	Y100L-4
	D	15	80	11	Y160M-2	15	Y160M-2	8	18	1.5	Y90L-4	2.2	Y100L-4
KC40-160	A	30	34	7.5	Y132S-2	11	Y160M-2	15	8	1.1	Y90S-4	1.1	Y90S-4
	B	28	30	5.5	Y132S-2	7.5	Y132S-2	15	7
	C	16	26	5.5	Y132S-2	5.5	Y132S-2	14	6
	D	14	18	3	Y100L-2	5.5	Y132S-2	12	4
KC40-200	A	34	50	11	Y160M-2	15	Y160M-2	16	13	1.5	Y90L-4	1.5	Y90L-4
	B	30	48	7.5	Y132S-2	11	Y160M-2	15	12	1.1	Y90S-4	1.5	Y90L-4
	C	26	38	5.5	Y132S-2	7.5	Y132S-2	14	9			1.1	Y90S-4
	D	22	30	5.5	Y132S-2	7.5	Y132S-2	12	7			1.1	Y90S-4
KC40-250	A	36	85	22	Y180M-2	30	Y200L-2	20	21	4	Y112M-4	5.5	Y132S-4
	B	34	80	18.5	Y160L-2	22	Y180M-2	18	20	3	Y100L-4	4	Y112M-4
	C	30	65	15	Y160M-2	18.5	Y160L-2	16	15	2.2	Y100L-4	3	Y100L-4
	D	26	50	11	Y160M-2	15	Y160M-2	13	12	2.2	Y100L-4	2.2	Y100L-4
KC40-315	A	46	140	45	Y225M-2	55	Y250M-2	22	36	7.5	Y132M-4	11	Y160M-4
	B	44	130	37	Y200L-2	45	Y225M-2	22	32	5.5	Y132S-4	7.5	Y132M-4
	C	40	100	30	Y200L-2	37	Y200L-2	20	24	4	Y112M-4	5.5	Y132S-4
	D	34	80	30	Y200L-2	30	Y200L-2	18	18	4	Y112M-4	4	Y112M-4
KC50-160	A	55	34	11	Y160M-2	11	Y160M-2	30	8	1.5	Y90L-4	2.2	Y100L-4
	B	50	30	7.5	Y132S-2	11	Y160M-2	26	7	1.1	Y90S-4	1.5	Y90L-4
	C	46	26	5.5	Y132S-2	7.5	Y132S-2	26	6			1.1	Y90S-4
	D	40	18	5.5	Y132S-2	5.5	Y132S-2	20	4			1.1	Y90S-4
KC50-200	A	65	56	18.5	Y160L-2	22	Y180M-2	34	14	3	Y100L-4	4	Y112M-4
	B	65	50	15	Y160M-2	18.5	Y160L-2	34	12	2.2	Y100L-4	3	Y100L-4
	C	50	40	11	Y160M-2	15	Y160M-2	30	10	1.5	Y90L-4	2.2	Y100L-4
	D	40	32	7.5	Y132S-2	11	Y160M-2	24	7	1.5	Y90L-4	1.5	Y90L-4
KC50-250	A	65	85	30	Y200L-2	37	Y200L-2	34	21	5.5	Y132S-4	5.5	Y132S-4
	B	60	80	30	Y200L-2	37	Y200L-2	30	20	4	Y112M-4	5.5	Y132S-4
	C	55	65	22	Y180M-2	30	Y200L-2	26	16	3	Y100L-4	4	Y112M-4
	D	45	60	15	Y160M-2	15	Y160M-2	24	12	2.2	Y100L-4	3	Y100L-4
KC50-315	A	80	140	75	Y280S-2	90	Y280M-2	42	36	11	Y160M-4	15	Y160L-4
	B	75	135	55	Y250M-2	75	Y280S-2	42	32	11	Y160M-4	15	Y160L-4
	C	70	110	45	Y225M-2	75	Y280S-2	40	26	7.5	Y132M-4	11	Y160M-4
	D	65	85	37	Y200L-2	45	Y225M-2	36	20	5.5	Y132S-4	7.5	Y132M-4
KC65-160	A	100	32	15	Y160M-2	18.5	Y160L-2	50	8	2.2	Y100L-4	3	Y100L-4
	B	90	32	15	Y160M-2	18.5	Y160L-2	48	7			3	Y100L-4
	C	90	24	11	Y160M-2	15	Y160M-2	46	6			2.2	Y100L-4
	D	80	14	5.5	Y132S-2	7.5	Y132S-2	38	4	1.5	Y90L-4	2.2	Y100L-4
KC65-200	A	100	54					50	13	4	Y112M-4	4	Y112M-4
	B	90	50	22	Y180M-2	30	Y200L-2	46	12	3	Y100L-4	4	Y112M-4
	C	90	40	18.5	Y160L-2	22	Y180M-2	42	10	3	Y100L-4	3	Y100L-4
	D	90	30	11	Y160M-2	15	Y160M-2	36	7	2.2	Y100L-4	2.2	Y100L-4
KC65-250	A	115	85	30	Y200L-2	37	Y200L-2	54	21	7.5	Y132M-4	11	Y160M-4
	B	115	75	45	Y225M-2	55	Y250M-2	50	20	5.5	Y132S-4	7.5	Y132M-4
	C	100	65	37	Y200L-2	45	Y225M-2	46	16	4	Y112M-4	5.5	Y132S-4
	D	80	50	30	Y200L-2	35	Y225M-2	40	10	3	Y100L-4	4	Y112M-4
KC65-315	A	135	135	90	Y280M-2	110	Y315S-2	64	32	11	Y160M-4	15	Y160L-4
	B	130	125	90	Y280M-2	110	Y315S-2	61	30			15	Y160L-4
	C	115	115	75	Y280S-2	90	Y280M-2	56	28			11	Y160M-4
	D	110	110	55	Y250M-2	75	Y280S-2	54	24
	E	90	85	45	Y225M-2	55	Y250M-2	50	20	5.5	Y132S-4
	F	75	70	30	Y200L-2	45	Y225M-2	52	16	5.5	Y132S-4	5.5	Y132S-4
KC80–160	A	170	30	22	Y180M-2	30	Y200L-2	75	8	3	Y100L-4	4	Y112M-4
	B	160	26	18.5	Y160L-2	22	Y180M-2	70	7	3	Y100L-4	3	Y100L-4
	C	150	22	15	Y160M-2	18.5	Y160L-2	70	5	2.2	Y100L-4	3	Y100L-4
	D	130	16	11	Y160M-2	15	Y160M-2	65	4			2.2	Y100L-4
KC80-200	A	150	50	37	Y200L-2	45	Y225M-2	80	12	5.5	Y132S-4	7.5	Y132M-4
	B	140	46	30	Y200L-2	37	Y200L-2	75	11	4	Y112M-4	5.5	Y132S-4
	C	130	38	22	Y180M-2	30	Y200L-2	65	9	3	Y100L-4	4	Y112M-4
	D	110	26	15	Y160M-2	18.5	Y160L-2	60	6	3	Y100L-4	3	Y100L-4
KC80-250	A	190	80	75	Y280S-2	90	Y280M-2	90	20	11	Y160M-4	11	Y160M-4
	B	180	70	55	Y225M-2	75	Y280S-2	85	19
	C	170	70	45	Y225M-2	75	Y280S-2	80	17
	D	150	55	37	Y200L-2	55	Y250M-2	75	14	5.5	Y132S-4
	E	130	47	30	Y200L-2	37	Y200L-2	70	11	5.5	Y132S-4	5.5	Y132S-4
KC80-315	A	200	130	110	Y315L-2	160	Y315L-2	100	32	15	Y160L-4	18.5	Y180M-4
	B	180	125	110	Y315L-2	132	Y315M-2	95	30			18.5	Y180M-4
	C	160	100	75	Y280S-2	90	Y280S-2	85	24			15	Y160L-4
	D	150	75	55	Y250M-2	75	Y280S-2	70	18			15	Y160L-4
KC80-400	A							105	52	30	Y200L-4	37	Y225S-4
	B							100	50			37	Y225S-4
	C							90	44			30	Y200L-4
	D							80	38	18.5	Y180M-4	30	Y200L-4
	E							75	30	18.5	Y180M-4	18.5	Y180M-4
KC100-200	A	220	45	45	Y225M-2	55	Y250M-2	115	11	5.5	Y132S-4	11	Y160M-4
	B	200	40	30	Y200L-2	45	Y225M-2	100	10			11	Y160M-4
	C	180	30	22	Y180M-2	30	Y200L-2	90	8			5.5	Y132S-4
	D	150	25	22	Y180M-2	30	Y200L-2	80	6			5.5	Y132S-4
KC100-250	A	280	75	90	Y280M-2	110	Y315S-2	130	20	30	Y200L-4	30	Y200L-4
	B	250	70	75	Y280S-2	110	Y315S-2	130	18	11	Y160M-4	15	Y160L-4
	C	230	55	55	Y250M-2	75	Y280S-2	120	14
	D	200	40	37	Y200L-2	55	Y250M-2	100	10
KC100-315	A	270	135	160	Y315L-2			132	32	30	Y200L-4	30	Y200L-4
	B	250	130	132	Y315M-2			120	30	18.5	Y180M-4	30	Y200L-4
	C	230	100	110	Y315S-2	132	Y315M-2	100	26	15	Y160L-4	15	Y160L-4
	D	200	85	75	Y280S-2	110	Y315S-2	90	21	15	Y160L-4	15	Y160L-4
KC100-400	A							150	50	45	Y225M-4	45	Y225M-4
	B							140	48	30	Y200L-4	45	Y225M-4
	C							120	40	30	Y200L-4	30	Y200L-4
	D							100	30	18.5	Y180M-4	30	Y200L-4
KC125-250	A							200	20	18.5	Y180M-4	22	Y180L-4
	B							200	18	15	Y160L-4	18.5	Y180M-4
	C							190	14	11	Y160M-4	15	Y160L-4
	D							160	10	11	Y160M-4	11	Y160M-4
KC125-315	A							200	30	30	Y200L-4	37	Y225S-4
	B							180	24	30	Y200L-4	30	Y200L-4
	C							170	18	18.5	Y180M-4	30	Y200L-4
	D							100	18	15	Y160L-4	18.5	Y180M-4
KC125-400	A							220	50	55	Y250M-4	75	Y280S-4
	B							200	48	45	Y225M-4
	C							180	46	37	Y225S-4	55	Y250M-4
	D							170	42	30	Y200L-4	45	Y225M-4
	E							150	36			30	Y200L-4
	F							150	30			30	Y200L-4
KC150-250	A							320	17	22	Y180L-4	30	Y200L-4
	B							300	15	18.5	Y180M-4
	C							280	13	18.5	Y180M-4
	D							260	12	15	Y160L-4	18.5	Y180M-4
	E							240	11	15	Y160M-4	15	Y160L-4
KC150-315	A							380	30	41	Y225M-4	75	Y280S-4
	B							340	26	37	Y225S-4	45	Y225M-4
	C							320	20	30	Y200L-4	37	Y225S-4
	D							300	17	22	Y180L-4	30	Y200L-4
KC150-400	A							400	48	75	Y280S-4	110	Y315S-4
	B							340	40	55	Y250M-4	75	Y280S-4
	C							300	34	45	Y225M-4	75	Y280S-4
	D							260	28	37	Y225S-4	45	Y225M-4
KC150-500	A							420	80	132	Y315M-4
	B							400	70	110	Y315S-4	160	Y315L-4
	C							360	65	110	Y315S-4	132	Y315M-4
	D							340	50	75	Y280S-4	110	Y315S-4
	E							300	45	55	Y250M-4	75	Y280S-4
KC200-250	A							600	12	30	Y200L-4	37	Y225S-4
	B							540	11	22	Y180L-4	30	Y200L-4
	C							500	10	22	Y180L-4	30	Y200L-4
KC200-315	A							650	24	55	Y250M-4	75	Y280S-4
	B							600	20	55	Y250M-4	75	Y280S-4
	C							550	16	37	Y225S-4	45	Y225M-4
	D							500	13	30	Y200L-4	37	Y225S-4
KC200-400	A							650	52	132	Y315M-4	200	Y315L-4
	B							550	45	90	Y280M-4	132	Y315M-4
	C							500	40	75	Y280S-4	110	Y315S-4
	D							450	30	55	Y250M-4	75	Y280S-4
KC200-500	A							700	75	200	Y315L-4	280
	B							650	65	160	Y315L-4	200	Y315L-4
	C							550	55	110	Y315S-4	160	Y315L-4
	D							450	40	75	Y280S-4	110	Y315S-4
KC250-315	A							950	22	75	Y280S-4	110	Y315S-4
	B							900	20	75	Y280S-4	90	Y280M-4
	C							900	16	55	Y250M-4	75	Y280S-4
	D							800	16	55	Y250M-4	75	Y280S-4
KC250-400	A							1000	44	160	Y315L-4	200	Y315L-4
	B							900	38	132	Y315M-4	200	Y315L-4
	C							850	30	110	Y315S-4	160	Y315L₁-4
	D							800	24	90	Y280M-4	110	Y315S-4
KC250-500	A							1200	80	355
	B							1100	70	280
	C							1000	55	200	Y315L₂-4
	D							850	45	160	Y315L₂-4
KC300-400	A							1500	40	200	Y315L₂-4
	B							1400	30	160	Y315L₂-4	200	Y315L₂-4
	C							1300	25	132	Y315M-4	160	Y315L₂-4
	D							1300	20	110	Y315S-4	160	Y315L₂-4
KC300-500	A							1700	70	450
	B							1500	60	355
	C							1300	50	280
	D							1100	40	160	Y315L₂-4
