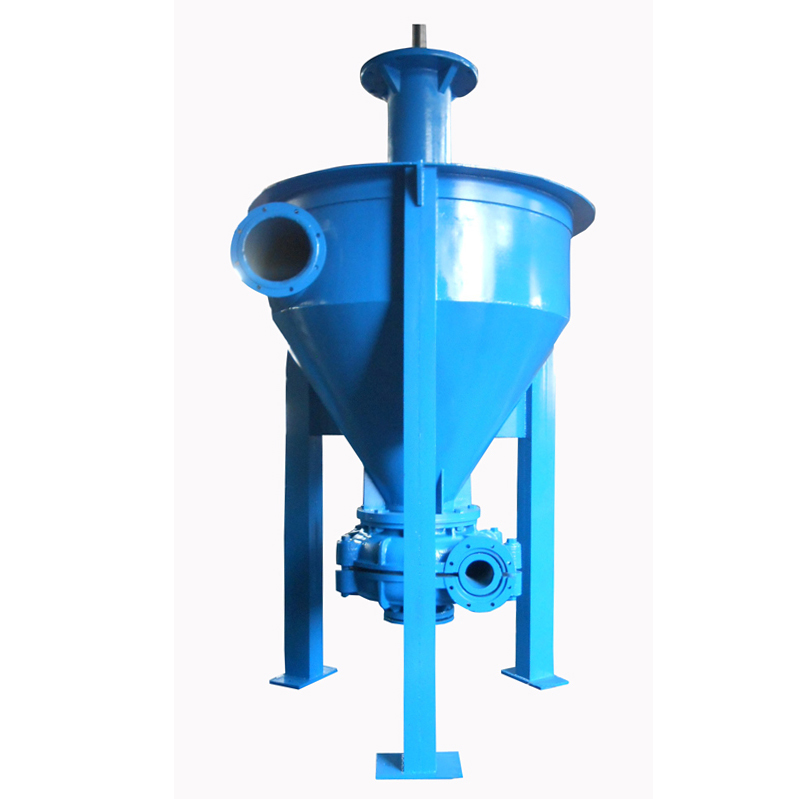

KF froth pumps are designed for continuous pumping of highly abrasive and corrosive frothy slurries, which have a vertical shaft configuration, and comprise a hopper, with vertical bearing assembly.
> Specifications
Discharge diameters 2” to 6” ( 50mm to 150mm)
Heads to 30m
Flow rates to 330m3/h
> Features
- Double casing froth pump, pump wet parts are made of hard nickel, high chrome alloy or rubber materials, the drive part is common to the KV(R) type vertical slurry pump.
- The funnel tank is made of steel plate, which can cover the inner lining according to the different conveying medium, and the pump outlet position can be changed at intervals of 45 degrees.
- Pump can effectively eliminate the foam in the slurry when working. It can still work normally when there is insufficient incoming material.
> Applications
Minerals flotation processing
Handle frothy slurries
Gold mine concentration plant
Potash fertilizer plant
