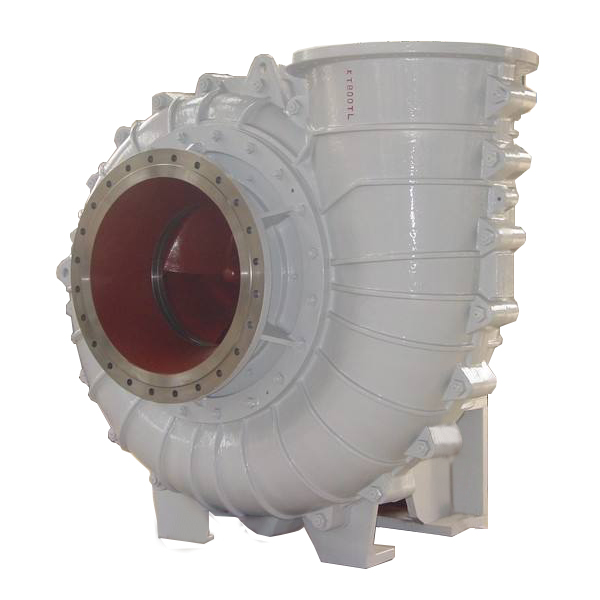

Desulfurization pump is a single-stage, single-suction horizontal centrifugal pump, mainly for the absorption tower circulating pump used in wet FGD device, it has the advantages of wide flow range, high efficiency and energy saving, simple structure and convenient maintenance. The pump is equipped with a compact X-type bracket, which can greatly save the space occupied. And it can be used in different operating conditions of the power plant.
> Specifications
Discharge diameters 350mm to 1000mm
Heads to 31m
Flow rates to 15000m3/h
> Features
- Pump casing with replaceable hard alloy or rubber liner has good wear resistance and corrosion resistance.
- Single pump casing, pump casing and impeller materials for the special high chromium alloy wear-resistant, corrosion resistant cast iron two-phase alloy manufacturing.
- Rear disassembly structure, easy inspection or replacement of impeller and mechanical seal without disassembly of inlet and outlet piping.
- High efficiency hard metal impeller.
- Oil lubrication, high capacity of bearing assembly.
- Shaft seal adopts mechanical seal with assembly, long service life and less maintenance.
- Design of direct connection between pump and driver.
> Applications
Power plant desulfurization
Power plant slag removal
